MAXIM INTEGRATED / ANALOG DEVICES MAX5395MATAT Digital Potentiometer
The MAX5395 is a compact, low-voltage digital potentiometer featuring 256 taps, configurable resistance options of 10kΩ, 50kΩ, and 100kΩ. It operates from 1.7V to 5.5V, with independent terminal voltages up to 5.25V, thanks to an internal charge pump. The device supports user-controlled shutdown modes, allowing terminals to be opened at various wiper positions, ideal for portable electronics and industrial applications. Its low quiescent current, low temperature coefficient, and automotive temperature range make it suitable for battery-powered and automotive systems. The device communicates via an I2C interface in a tiny 8-pin TDFN package, ensuring reliable operation over a wide temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX5395MATAT Digital Potentiometer Specifications:
- Resistance Options: 10kΩ, 50kΩ, 100kΩ
- Number of Taps: 256
- Supply Voltage Range: 1.7V to 5.5V
- Terminal Voltage (H, W, L): Up to 5.25V, independent of supply
- Quiescent Supply Current: < 1A
- End-to-End Temperature Coefficient: 50ppm/°C
- Wiper Resistance: Max 50Ω (typ 25Ω)
- Package: 8-pin TDFN (2mm x 2mm)
- Operating Temperature: -40°C to +125°C
- Communication Interface: I2C/SMBus compatible
- Charge Pump: Internal, enabled by default, configurable
- Shutdown Mode: User-controlled, terminals can be opened
- Application suitability: Portable electronics, industrial, automotive, battery backup

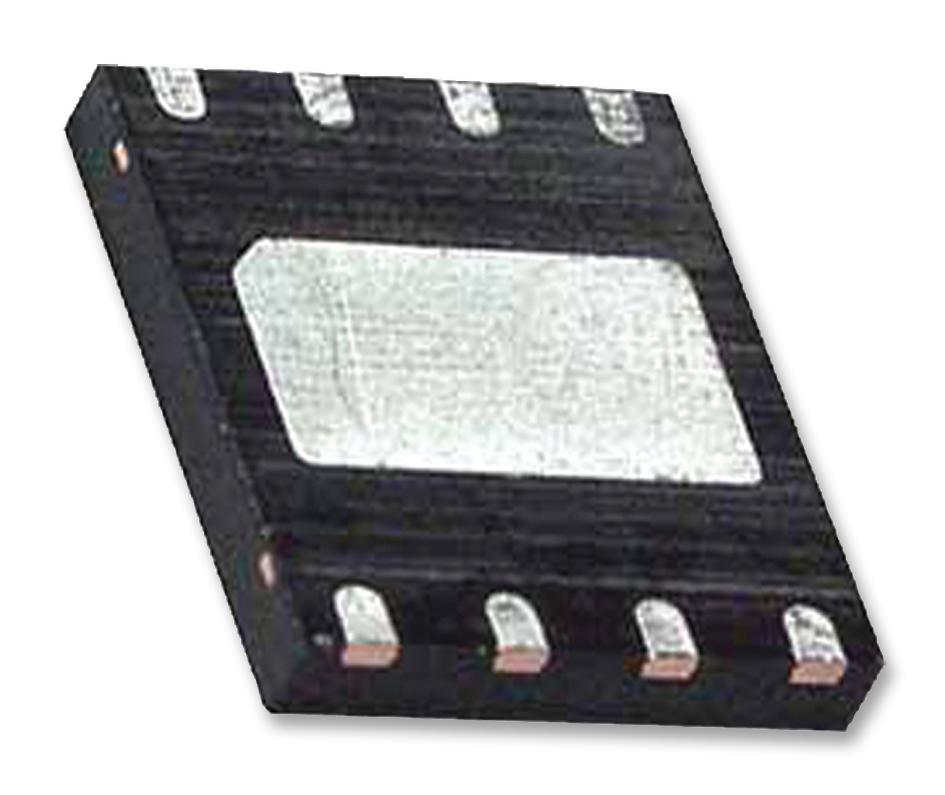

Buy the Maxim Series MAX5395 Resistance: 50kΩ
Purchase the Maxim Series MAX5395 digital potentiometer online today to enhance your electronic projects with low-voltage operation, high accuracy, and compact size. This 256-tap device offers resistance options of 10kΩ, 50kΩ, and 100kΩ, making it suitable for portable, industrial, and automotive systems. Its integrated charge pump allows independent terminal voltages up to 5.25V, ensuring versatile operation. With an I2C interface, ultra-low quiescent current, and operation over a wide temperature range, this device provides reliable performance and precise control, perfect for the most demanding applications.
Order your Maxim Series MAX5395 50kΩ digital potentiometer today and give your projects the dependable high-precision control they deserve.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5395MATAT?
You can click on the BUY or RFQ button to purchase MAX5395MATAT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5395MATAT?
You can download the MAX5395MATAT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5395MATAT?
MAXIM INTEGRATED / ANALOG DEVICES
