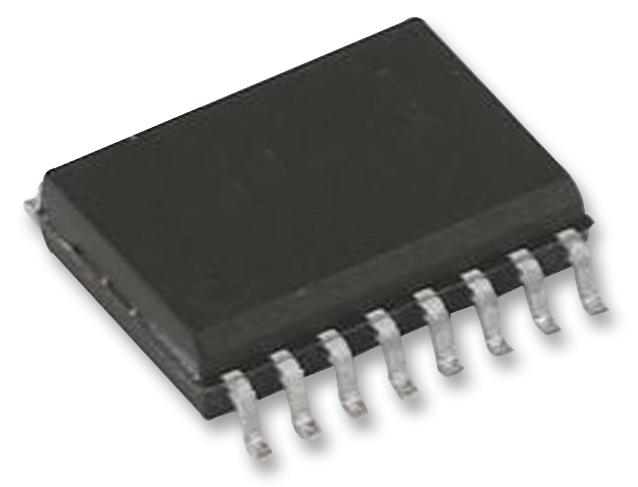

MAXIM INTEGRATED / ANALOG DEVICES MAX520ACWE Quad DAC
The MAX520ACWE+ is a quad 8-bit voltage output digital-to-analog converter (DAC) featuring a simple 2-wire serial interface in a 16-pin WSOIC package. It allows communication between multiple devices via its serial interface. Designed to operate from a single 5V supply, its reference input range covers both supply rails. The device's unbuffered voltage outputs reduce total supply current to 4 microamps and offer increased accuracy at low output currents. It supports an internal software protocol capable of data rates up to 400 kbps, enabling individual or simultaneous updates of DAC registers through a double-buffered input configuration. The DAC can be placed into a low-power shutdown mode, reducing supply current further to 4 microamps. Power-on reset ensures all outputs are at 0V when power is first applied. Suitable for minimal component analog systems, digital offset and gain adjustments, automatic test equipment, and programmable attenuators.
MAXIM INTEGRATED / ANALOG DEVICES MAX520ACWE Quad DAC Specifications:
- Resolution: 8 Bits
- Number of DACs: 4
- Output Type: Voltage Output (unbuffered)
- Supply Voltage: +5V
- Reference Input Range: Includes both supply rails
- Supply Current (unbuffered): 4 μA
- Interface: 2-wire serial, I2C compatible
- Data Rate: Up to 400 kbps
- Low Power Mode: Shutdown reduces current to 4 μA
- Power-On Reset: Outputs at 0V
- Package: 16-pin WSOIC
- Applicable applications: Minimal component systems, digital offset/gain, test equipment, programmable attenuators
Buy the Buy Maxim MAX520ACWE Online
Purchase the Maxim MAX520ACWE online today to ensure high-precision, low-power digital-to-analog conversion. Its simple 2-wire interface allows easy integration into various minimal component analog systems. Designed to operate from a single +5V supply, it features unbuffered voltage outputs and supports data rates up to 400 kbps. Ideal for digital offset/gain adjustments, automatic test equipment, and programmable attenuators, the MAX520ACWE ensures reliable performance with power-on reset to zero volts and a low supply current of just 4 microamps in shutdown mode. Secure your system's analog performance by ordering online now.
Buy Maxim MAX520ACWE now and experience unmatched reliability and precision for minimal systems and test equipment.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX520ACWE?
You can click on the BUY or RFQ button to purchase MAX520ACWE from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX520ACWE?
You can download the MAX520ACWE datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX520ACWE?
MAXIM INTEGRATED / ANALOG DEVICES
