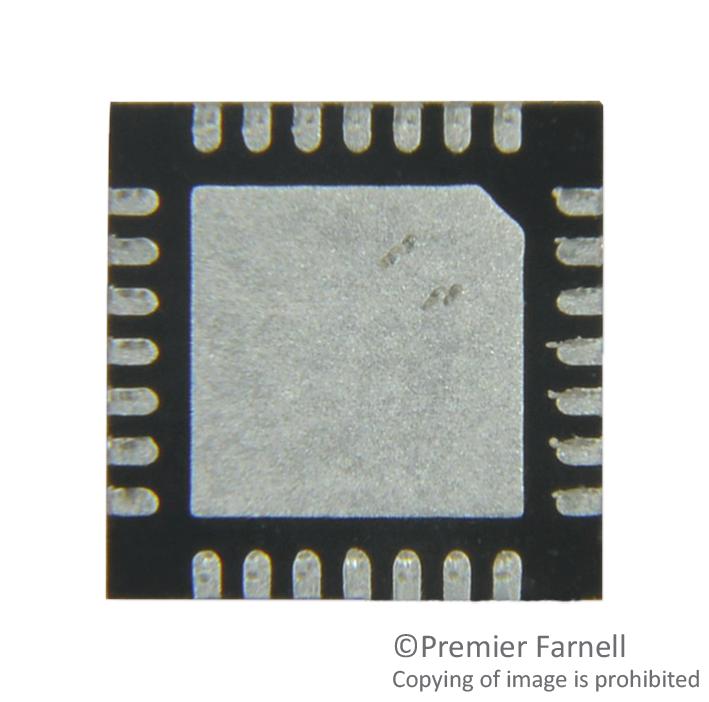

MAXIM INTEGRATED / ANALOG DEVICES MAX9788ETI Ceramic Speaker Driver
The MAX9788ETI+ is a high-efficiency 14V peak-to-peak class G ceramic speaker driver in a compact 28-pin TQFN package. It features an integrated inverting charge pump power supply that eliminates the need for an external inductor, allowing it to drive high-capacitance ceramic or piezoelectric speakers effectively. Capable of delivering peak currents over 700mA at 5.5VDC, the device offers a wide supply range of 2.7V to 5.5V and operates within -40°C to 85°C. It includes differential inputs, click-and-pop suppression, soft-start, and shutdown control, making it ideal for portable applications like cell phones, MP3 players, and handheld gaming devices. Its high efficiency maximizes battery life while producing minimal electromagnetic interference.
MAXIM INTEGRATED / ANALOG DEVICES MAX9788ETI Ceramic Speaker Driver Specifications:
- Supply Voltage Range: 2.7V to 5.5V
- Output Voltage Swing: 14Vp-p
- Peak Output Current: >700mA at 5.5V
- Operating Temperature Range: -40°C to +85°C
- Package: 28-pin TQFN
- Quiescent Current: 8mA
- Shutdown Current: 0.3μA
- Output Offset Voltage: ±3mV
- Total Harmonic Distortion plus Noise: 0.002% at 1kHz, 4.0V RMS
- Power-Supply Rejection Ratio: 77dB
- Common Mode Rejection Ratio: 68dB at 1kHz
- Maximum Continuous Power: 2.4W at 5V
- Click-and-Pop Suppression: Yes
- Differential Inputs and Outputs: Yes
Buy the Buy MAX9788ETI+ Class G Ceramic Speaker Driver Part Number MAX9788ETI Online
Purchase the MAX9788ETI+ ceramic speaker driver online today to harness its high output voltage swing, efficient class G operation, and integrated charge pump. This compact, 28-pin TQFN device is perfect for battery-powered portable electronics, including cell phones, MP3 players, and gaming consoles. Its differential inputs and click suppression ensure superior audio quality, while the extended temperature range guarantees durability in demanding environments. Take advantage of fast shipping and excellent customer support to upgrade your audio projects with this advanced high-voltage driver.
Buy MAX9788ETI+ high-efficiency ceramic speaker driver now and experience reliable, clear sound with integrated charge pump technology ideal for portable devices.
