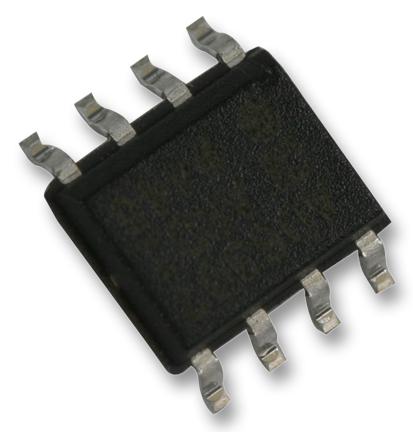

MAXIM INTEGRATED / ANALOG DEVICES MAX6250BCSA Voltage Reference
The MAX6250BCSA is a low-noise, high-precision voltage reference providing 5.000V output with very low temperature coefficient and excellent initial accuracy. It features buried-zener technology for low noise performance, good long-term stability, and excellent line and load regulation. Its stable operation with capacitive loads up to 100uF makes it ideal for high-resolution data acquisition and instrumentation systems. Suitable for applications requiring exceptional accuracy and stability, it offers optional external trimming and noise reduction features, along with industry-standard pin configurations for easy integration.
MAXIM INTEGRATED / ANALOG DEVICES MAX6250BCSA Voltage Reference Specifications:
- Output Voltage: 5.000V
- Temperature Coefficient: 25 ppm/°C
- Initial Accuracy: 0.02%
- Line Regulation: 5 ppm/V
- Load Regulation: 3.0 ppm/mA
- Dynamic Response: Fast transient response for load changes
- Noise Voltage: 25 nV/√Hz at 10Hz to 1kHz bandwidth
- Long-Term Stability: 20 ppm over 425°C
- Supply Voltage Range: 8V to 36V
- Power Consumption: 7 mA typical
- Operating Temperature Range: -40°C to +85°C
- Package: 8-Pin SO, RoHS-compliant
- Capacitive Load Stability: Up to 100uF
Buy the Maxim Series Precision Voltage Reference: MAX6250BCSA
Purchase the Maxim Series MAX6250BCSA voltage reference online today and elevate your engineering projects with unmatched accuracy, low noise, and excellent temperature stability. This highly stable component is perfect for high-resolution data converters, instrumentation, and industrial applications requiring precise voltage regulation. With optional external trimming and noise reduction, it ensures optimal performance in demanding environments. Order now and receive fast shipping, reliable performance, and industry-standard pin compatibility for seamless integration into your designs.
Order your Maxim Series MAX6250BCSA precision voltage reference today and ensure your high-resolution systems operate with unmatched accuracy and stability.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6250BCSA?
You can click on the BUY or RFQ button to purchase MAX6250BCSA from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6250BCSA?
You can download the MAX6250BCSA datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6250BCSA?
MAXIM INTEGRATED / ANALOG DEVICES
