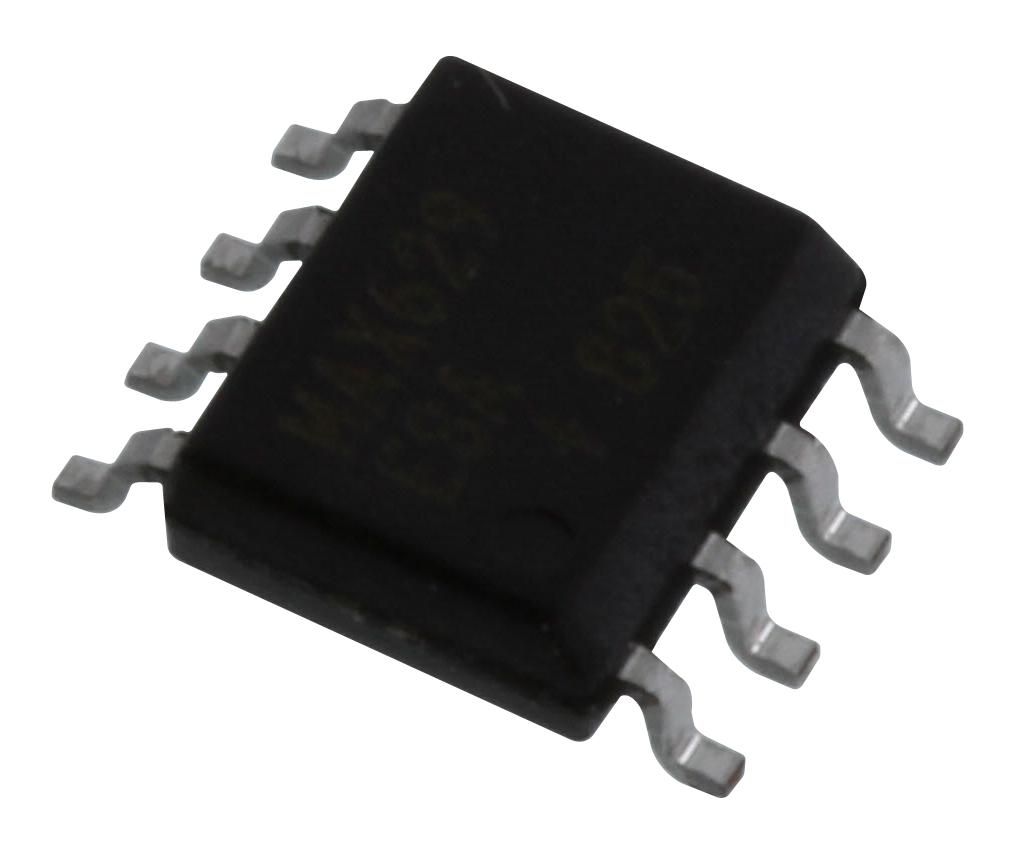

MAXIM INTEGRATED / ANALOG DEVICES MAX629ESA High-Voltage DC-DC Converter
The MAX629ESA+ low-power high-voltage DC-DC converter features an internal N-channel MOSFET switch with programmable current limiting, designed to generate positive or negative voltages up to ±28V from input voltages as low as 0.8V. It supports various configurations such as boost, flyback, and SEPIC topologies with high efficiency ensured by pulse-frequency modulation control. Its 0.5A internal switch and switching frequency of up to 300kHz enable compact, surface-mount magnetic components. The device is ideal for powering LCD bias, varactor tuning, and battery-powered electronics, consuming about 80µA during operation and less than 1µA in shutdown.
MAXIM INTEGRATED / ANALOG DEVICES MAX629ESA High-Voltage DC-DC Converter Specifications:
- Input Voltage Range: 0.8V to VOUT (up to 28V)
- Output Voltage: ±28V (positive or negative bias)
- Internal N-Channel MOSFET Switch: 0.5A, 28V
- Switching Frequency: Up to 300kHz
- Supply Current: 80µA (operational), 1µA (shutdown)
- Max Current Limit: Programmable via ISET pin (250mA or 500mA)
- Package: 8-pin SO
- Operating Temperature: -40°C to +85°C
- Dimensions: Compact surface-mount configuration
- Application: LCD bias, varactor diode bias, battery-powered devices
Buy the Maxim MAX629ESA – Reliable High-Voltage DC-DC Converter for Industrial Applications
Purchase the Maxim MAX629ESA high-voltage, low-power DC-DC converter online now. Featuring internal MOSFET switch, adjustable current limiting, and high efficiency, it’s ideal for powering LCD biases, varactor tuning, and battery-operated electronics. Its compact 8-pin SO package and switching frequency up to 300kHz enable small, efficient designs. With typical supply current of only 80 microamps during operation and less than 1 microamp in shutdown, this converter provides reliable, long-lasting performance for your power management needs. Order online today for fast delivery and premium quality.
Get Maxim MAX629ESA today—built for precision and long-lasting durability in high-voltage power management applications.
