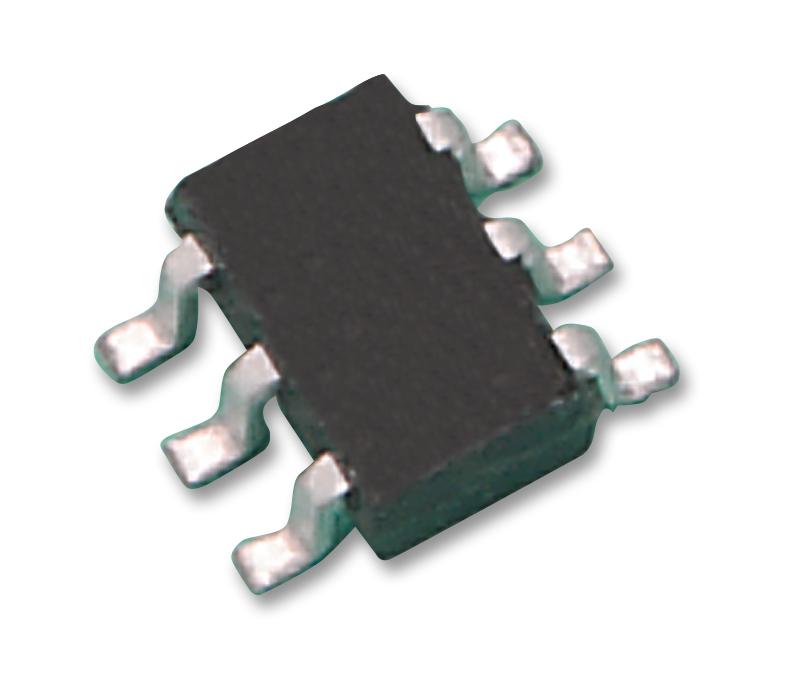

MAXIM INTEGRATED / ANALOG DEVICES MAX4520EUTT Analog Switch
The MAX4520EUT+T is a rail-to-rail, fault-protected single-pole single-throw analog switch housed in a 6-pin SOT-23 package. It protects against overvoltage faults up to 36V during power-on and 44V with power off. In a fault, the input becomes an open circuit with minimal leakage, while the output supplies up to 13mA of polarity, with a maximum on-resistance of 160 ohms and very low off leakage current of 0.5nA at 25°C. It supports logic levels with thresholds of +0.8V to +2.4V, powered by ±15V or +12V, operates over -40°C to 85°C, and requires no power sequencing. When power is off or during a fault, it remains off; during faults, the output is clamped without glitches. Power consumption is under 2mW. Ideal for signal processing, portable devices, and avionics applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX4520EUTT Analog Switch Specifications:
- Supply Voltage Range: 9V to 36V (+4.5V to +20V dual supplies, +9V to +36V single supply)
- On-Resistance: Max 160Ω
- Leakage Current: 0.5nA at 25°C, 10nA at 85°C
- Fault Protection: Up to 36V during power on, 44V with power off
- Output Current: Up to 13mA in fault condition
- Logic Thresholds: +0.8V to +2.4V, TTL and CMOS compatible
- Operating Temperature: -40°C to 85°C
- Package: 6-pin SOT-23
- Power Consumption: Less than 2mW
- Fault Condition Handling: Output clamped to supply voltage, no glitches
- Application: Signal processing, portable electronics, avionics
Buy the Maxim Series MAX4520 Analog Switch: MAX4520EUT+T
Purchase the Maxim Series MAX4520EUT+T online now and enhance your systems with this reliable fault-protected analog switch. Featuring rail-to-rail signal handling, low on-resistance, and minimal leakage current, it offers robust overvoltage protection up to 36V during power-on and 44V with power off. Its TTL/CMOS-compatible logic thresholds ensure easy integration into various logic environments. Suitable for industrial automation, portable devices, and avionics, this compact 6-pin SOT-23 package provides high performance with low power consumption below 2mW. Reliable and easy to implement, buy now for seamless signal control in your projects.
Order your Maxim Series MAX4520EUT+T fault-protected analog switch today and ensure reliable signal switching with low leakage and overvoltage protection.
