MAXIM INTEGRATED / ANALOG DEVICES MAX6389XS44D3T Low-Voltage Reset Circuit
The MAX6389XS44D3+T is a dual low-voltage, low-power microprocessor (μP) reset circuit housed in a 4-pin SC-70 package. It monitors power supply voltages ranging from 1.8V to 5V, consuming only 3μA at 1.8V. When the supply voltage drops below the preset reset threshold, the reset output asserts and stays active for at least 280 milliseconds after the voltage recovers above the threshold. The device features an open-drain, active-low reset output and an auxiliary input for monitoring a secondary voltage. It is suitable for use in controllers, intelligent instruments, microprocessor and microcontroller power monitoring, and battery-powered equipment. Key specifications include a reset threshold voltage of 4.38V with ±2.5% accuracy, a supply voltage range of 1V to 5.5V, and operation over -40°C to 125°C. The reset output remains valid at VCC as low as 1V and has immunity to negative-going VCC transients. It also offers low power consumption of 6μA at 3.6V. Due to high market demand, lead times may be extended, and the product is exempt from discounts.
MAXIM INTEGRATED / ANALOG DEVICES MAX6389XS44D3T Low-Voltage Reset Circuit Specifications:
- Reset threshold voltage: 4.38V with ±2.5% accuracy
- Supply voltage range: 1V to 5.5V
- Operating temperature: -40°C to 125°C
- Supply current: 3μA at 1.8V, 6μA at 3.6V
- Reset timeout period: ≥280ms
- Reset output: Open-drain, active-low
- Monitoring of secondary voltage via auxiliary input
- Voltage transient immunity for negative-going VCC glitches
- Package: 4-pin SC-70
- Supported applications: controllers, microcontrollers, power monitoring, battery-powered equipment

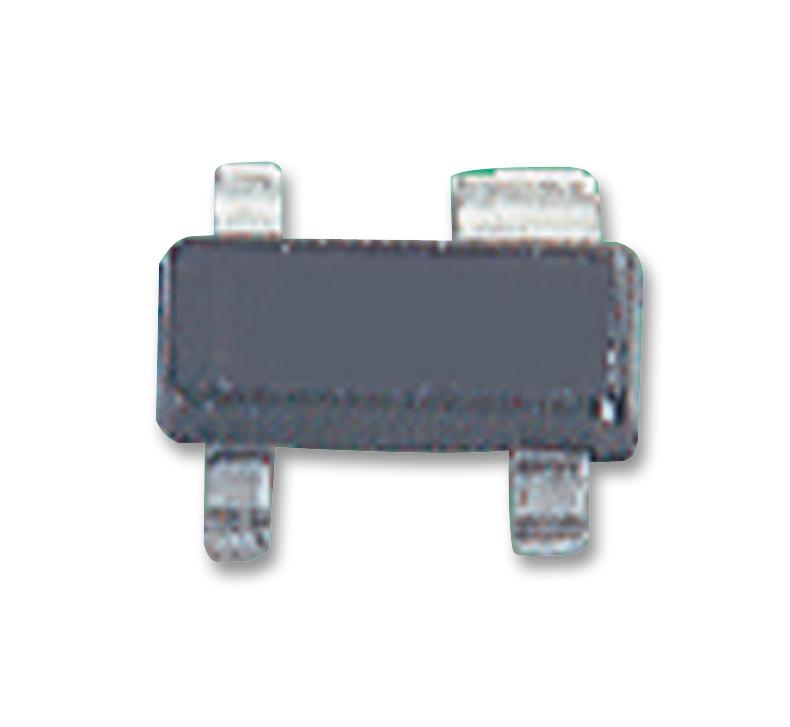

Buy the Maxim MAX6389XS44D3T – Reliable Microprocessor Reset Circuit for Industrial Applications
Purchase the Maxim MAX6389XS44D3T online today to fortify your electronic designs with a highly reliable, low-power microprocessor reset circuit. This compact 4-pin SC-70 package device monitors voltage levels from 1V to 5V, asserts reset when voltage drops below the threshold, and stays active for 280 milliseconds after recovery. With an open-drain, active-low output, auxiliary voltage monitoring, and immunity to VCC transients, it is ideal for controllers, power management systems, and portable electronics. Secure quick delivery and trusted quality by ordering now.
Order your Maxim MAX6389XS44D3T today and ensure your microcontroller projects are protected with dependable low-voltage reset solutions.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6389XS44D3T?
You can click on the BUY or RFQ button to purchase MAX6389XS44D3T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6389XS44D3T?
You can download the MAX6389XS44D3T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6389XS44D3T?
MAXIM INTEGRATED / ANALOG DEVICES
