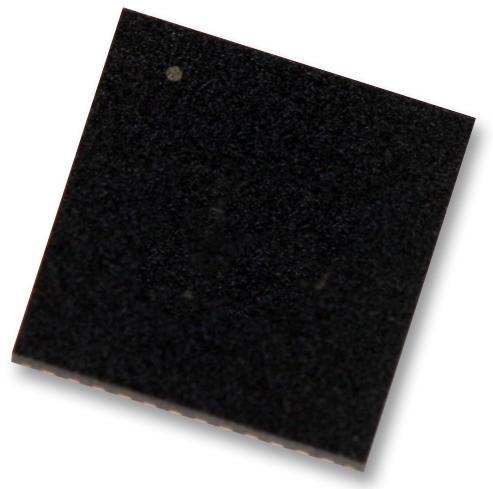

MAXIM INTEGRATED / ANALOG DEVICES MAX5864ETM Analog Front End
The MAX5864ETM+ is an ultra-low power, high-performance 22Msps analog front-end in a 48-pin TQFN package. It features dual 8-bit receive ADCs and dual 10-bit transmit DACs, delivering excellent dynamic range and low power consumption. The ADCs have fully differential I-Q input amplifiers supporting full-scale signals of 1V peak-to-peak, with typical phase matching of ±0.1° and amplitude matching of ±0.03dB. They achieve 48.5dB SINAD and 69dBc SFDR at 5.5MHz input frequency and 22Msps. The DACs provide fully differential I-Q outputs with ±400mV full-scale and a 1.4V common mode level, with phase matching of ±0.15° and amplitude matching of ±0.05dB. They offer 10-bit resolution with 71.7dBc SFDR and 57dB SNR at 2.2MHz output frequency. The device supports simultaneous or independent operation of ADCs and DACs for FDD and TDD systems. It operates from a supply voltage of 2.7V to 3.3V, within a temperature range of -40°C to 85°C, and includes an internal 1.024V voltage reference or an external reference. Controlled via a 3-wire serial interface, it consumes ultra-low power—approximately 42mW at 22MHz and 34mW at 15.36MHz. Digital outputs are TTL/CMOS compatible, with multiplexed parallel input/output for both ADCs and DACs. The device features an integral nonlinearity of ±0.15LSB and differential nonlinearity of ±0.15LSB, with ADC offset error of ±0.24% full scale and gain error of ±0.77% full scale. Designed for signal processing and portable devices, this product is subject to extended lead times due to market demand, and delivery dates may vary.
MAXIM INTEGRATED / ANALOG DEVICES MAX5864ETM Analog Front End Specifications:
- Dual 8-bit receive ADCs with differential I-Q input amplifiers supporting ±1V full-scale signals
- Dual 10-bit transmit DACs with differential outputs, ±400mV full-scale, 1.4V common mode
- SINAD 48.5dB and SFDR 69dBc at input frequency 5.5MHz, 22Msps
- Resolution: 8-bit ADC, 10-bit DAC; Integral nonlinearity ±0.15LSB; Differential nonlinearity ±0.15LSB
- Power consumption: approximately 42mW at 22MHz, 34mW at 15.36MHz
- Supply voltage: 2.7V to 3.3V; Operating temperature: -40°C to 85°C
- Internal 1.024V voltage reference, supports external reference
- Serial interface: 3-wire SPI compatible
- Digital outputs TTL/CMOS compatible, multiplexed parallel I/O
- Supports FDD/TDD modes, simultaneous or independent ADC/DAC operation
- Package: 48-pin Thin QFN (7mm x 7mm)
- Includes low noise, high dynamic range specifications for RF and communication applications
Buy the Maxim Series MAX5864 Analog Front End: MAX5864ETM
Accelerate your projects by ordering the Maxim Series MAX5864ETM online today. This ultra-low power, high-performance analog front-end features dual 8-bit ADCs and dual 10-bit DACs, supporting both FDD and TDD modes. Its differential inputs and outputs, low noise, and wide operating temperature make it ideal for portable communication devices and RF applications. Fast, reliable global shipping ensures your hardware arrives promptly to meet development deadlines. Invest in the MAX5864ETM online now and bring superior signal processing capabilities to your system infrastructure.
Order your Maxim Series MAX5864ETM today and enhance your RF systems with high-performance, low power analog front-end solutions.
