MAXIM INTEGRATED / ANALOG DEVICES MAX6467US29D3T Microprocessor Reset Circuit
The MAX6467 and MAX6468 are highly reliable microprocessor supervisory reset circuits designed for industrial applications, embedded systems, and portable equipment. They monitor power supply voltages from +1.8V to +5.0V, asserting a reset if voltage drops below preset thresholds ranging from +1.575V to +4.625V. Featuring edge-triggered, one-shot manual reset with delay options of 150ms or 1200ms, they provide a fixed timeout period, ensuring system stability. Available in small 4-pin packages, they operate over -40°C to +125°C, requiring no external components, thus simplifying system design and boosting reliability.
MAXIM INTEGRATED / ANALOG DEVICES MAX6467US29D3T Microprocessor Reset Circuit Specifications:
- Reset Threshold Voltages: +1.575V to +4.625V, factory-trimmed for various supply voltages
- Manual Reset: Edge-triggered, one-shot pulsed reset with debounce immunity
- Timeout Periods: 150ms or 1200ms min options available
- Operating Voltage Range: +1.8V to +5.5V with guaranteed operation down to +1V Vcc
- Output Types: Active-low open-drain (MAX6467) or push-pull (MAX6468)
- Supply Current: 3µA at Voc = +1.8V, low power consumption
- Operating Temperature: -40°C to +125°C, suitable for automotive environments

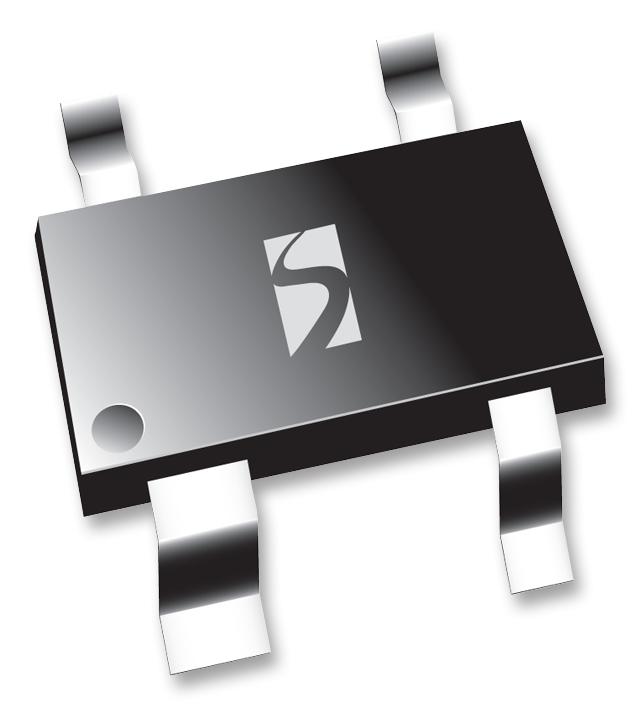

- Small form factors: 4-pin SC70 and SOT143 packages, no external components required
Buy the Maxim MAX6467U– Reliable Power Monitoring for Industrial Applications
Enhance your system reliability with the Maxim MAX6467 microprocessor reset circuit, designed for monitoring supply voltages from +1.8V to +5V. This device provides a fixed timeout reset with manual override capability, ideal for embedded, industrial, and automotive applications. It features factory-set thresholds, low supply current, and no external components, simplifying integration. Available in compact packages, it guarantees operation over -40°C to +125°C, ensuring dependable system resets under various conditions. Purchase online today to secure your system’s stability and performance with this trusted reset solution.
Buy Maxim MAX6467 now and ensure robust reset control for low-voltage and power-sensitive embedded systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6467US29D3T?
You can click on the BUY or RFQ button to purchase MAX6467US29D3T from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6467US29D3T?
You can download the MAX6467US29D3T datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6467US29D3T?
MAXIM INTEGRATED / ANALOG DEVICES
