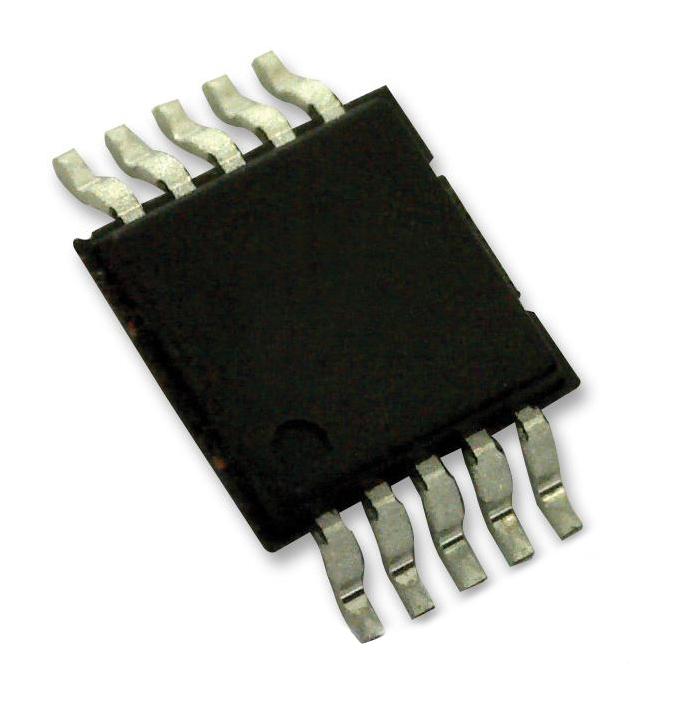

MAXIM INTEGRATED / ANALOG DEVICES MAX6652AUB Temperature and Voltage Supervisor
The MAX6652 system supervisor monitors multiple power-supply voltages including 2.5V, 3.3V, 12V, and its own supply, along with an onboard temperature sensor. Utilizing an 8-bit ADC, it converts voltages and temperature data, sequencing inputs through a multiplexer for precise measurements. It features programmable voltage and temperature thresholds, ALERT output with various interrupt modes, SMBus interface supporting I°C and SMBus commands, and operates over a voltage range of 2.7V to 5.5V. Compact in a 10-pin package, ideal for thermal management and system supervision in computers and telecom equipment.
MAXIM INTEGRATED / ANALOG DEVICES MAX6652AUB Temperature and Voltage Supervisor Specifications:
- Monitors voltages: 2.5V, 3.3V, 12V, Vcc
- Onboard temperature sensor
- ADC resolution: 8-bit with oversampling ratio of 8
- Voltage scaling: nominal input scaled to 3/4 of ADC full-scale
- Voltage measurement range: 2.7V to 5.5V supply
- Temperature measurement accuracy: ±2°C at +25°C
- Operating temperature: -40°C to +125°C
- Supply voltage: +2.7V to +5.5V
- Communication interface: SMBus / I²C, with address selection via ADD pin
- Alert output: Open-drain, active low, controllable via registers
- Programmable voltage thresholds with registers for high/low limits
- Programmable temperature thresholds for hot and hysteresis limits
- Device in a tiny 10-pin package, suitable for compact system designs
- Line-frequency rejection: 50Hz/60Hz for noise immunity
- Power consumption in active mode: approximately 500μA
Buy the Maxim MAX6652U– Reliable Voltage and Temperature Monitor for Industrial Applications
Order the Maxim MAX6652AUB online today to ensure reliable system supervision with programmable thresholds and ALERT functions. Its compact design, SMBus interface, and accurate measurements make it ideal for managing thermal and voltage conditions in industrial equipment, computers, and networking systems. With easy integration, low power consumption, and versatile alert modes such as default, one-time, and comparator, the MAX6652 ensures your system operates safely and efficiently. Purchase now and enhance your system's thermal and voltage management capabilities with confidence.
Get Maxim MAX6652AUB today—built for precise voltage and temperature monitoring in demanding systems.
