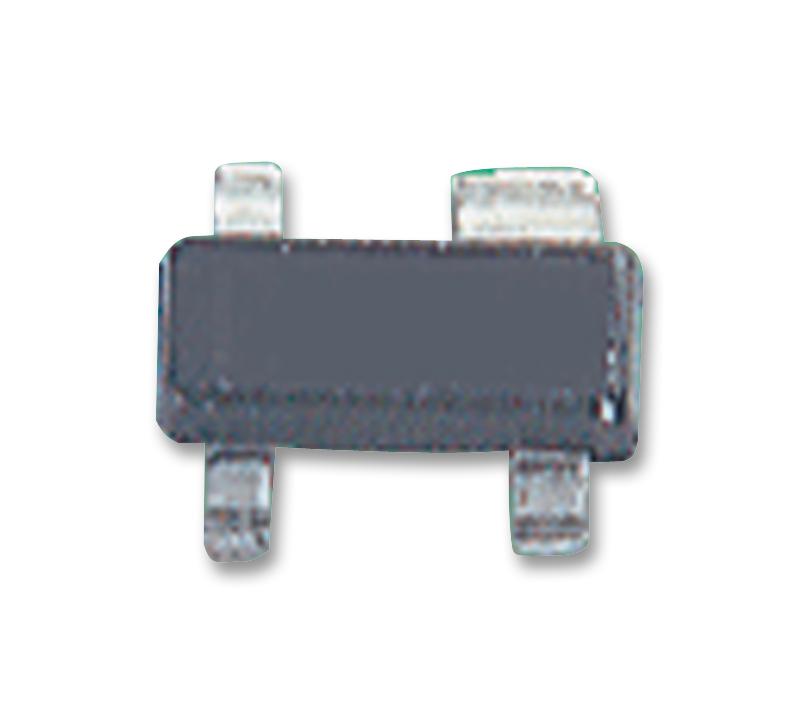

MAXIM INTEGRATED / ANALOG DEVICES MAX6711TEXST Supervisory Circuit
The MAX6711TEXS+T is a microprocessor supervisory circuit in a 4-pin SC-70 package designed to ensure reliable power supply monitoring in digital and microprocessor systems. It asserts a reset signal when the supply voltage drops below a configurable threshold, with the reset active for at least 140ms after recovery. Supporting supply voltages from 1.2V to 5.5V and temperatures from -40°C to 125°C, it features a push-pull output, low 12µA current, and immunity to supply transients. Applications include system monitoring, portable devices, and intelligent instrumentation with no external components needed.
MAXIM INTEGRATED / ANALOG DEVICES MAX6711TEXST Supervisory Circuit Specifications:
- Supply Voltage Range: 1.2V to 5.5V
- Operating Temperature: -40°C to +125°C
- Reset Threshold Voltage: Typical 3.08V at 3.3V supply
- Reset Pulse Width: Minimum 140ms
- Output Type: Push-Pull
- Supply Current: 12µA
- Package: 4-pin SC-70
- Threshold Accuracy: ~5%
- Transient Immunity: Yes
- Manual Reset Input: Available
- Thermal Range: Commercial and industrial temperature ranges
- No external components required
- Built-in debounce for manual reset
- Designed for power supply monitoring in portable/battery-powered systems
- Voltage thresholds configurable for various supply voltages
- Fully specified over temperature range
Buy the Maxim Series MAX6711T Supervision Circuit: MAX6711TEXS+T
Order the Maxim MAX6711TEXS+T online today and enhance your system's reliability with this low-power, highly accurate microprocessor supervisor. An ideal choice for portable and mission-critical applications, this device provides reliable power monitoring with programmable thresholds, rapid reset assertion, and no external components required. Protect your digital systems from brownouts and power failures efficiently with this compact, robust supervisory circuit. Purchase now to ensure seamless system operation and peace of mind in your electronic designs.
Buy Maxim MAX6711TEXS+T now and experience unmatched reliability and performance in power supply monitoring for your digital systems.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX6711TEXST?
You can click on the BUY or RFQ button to purchase MAX6711TEXST from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX6711TEXST?
You can download the MAX6711TEXST datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX6711TEXST?
MAXIM INTEGRATED / ANALOG DEVICES
