MAXIM INTEGRATED / ANALOG DEVICES MAX251EPD RS-232 Isolator
The MAX251EPD+ is a 5V-powered, isolated RS232 driver and receiver integrated in a 14-pin DIP package. It forms the core of a fully isolated RS232 dual transmitter and receiver setup. By combining multiple functions on two chips, it greatly reduces the cost and complexity of isolated digital interfaces. The system requires only four low-cost optocouplers, four capacitors, a diode, and a small pot-core transformer to create a 19.2k baud transceiver. Higher data rates can be achieved using high-speed optocouplers. The device includes circuitry for driving and receiving data from optocouplers and incorporates a push-pull transformer driver to supply power to the isolated side. It is suitable for use in bridging ground differentials and data links to analog circuits. Key features include a supply voltage range of 4.5V to 5.5V, operational temperature from -40°C to 85°C, isolated data interface, positive supply current of 2.5mA, very low shutdown power of 5µW, and bidirectional data communication with 2 transmitters and 2 receivers. The enable and disable times for the 3-state control are 3.5µs and 1µs, respectively, with a maximum threshold voltage of 2V.
MAXIM INTEGRATED / ANALOG DEVICES MAX251EPD RS-232 Isolator Specifications:
- Supply Voltage Range: 4.5V to 5.5V
- Operating Temperature: -40°C to +85°C
- Package: 14-pin DIP
- Isolation: Yes
- Data Rate: Up to 19.2k baud, higher with high-speed optocouplers
- Supply Current: 2.5mA
- Shutdown Power: 5µW
- Enable/Disable Times: 3.5µs / 1µs
- Maximum Threshold Voltage: 2V
- Optocoupler Compatibility: 4N26 or 6N136
- Input Voltage: RS-232 levels
- Output Voltage: RS-232 levels
- Transformer Drive: Push-pull with 1:1 turns ratio
- Max Output Voltage: ±15V
- Input/Output Impedance: Conforms to RS-232 standards

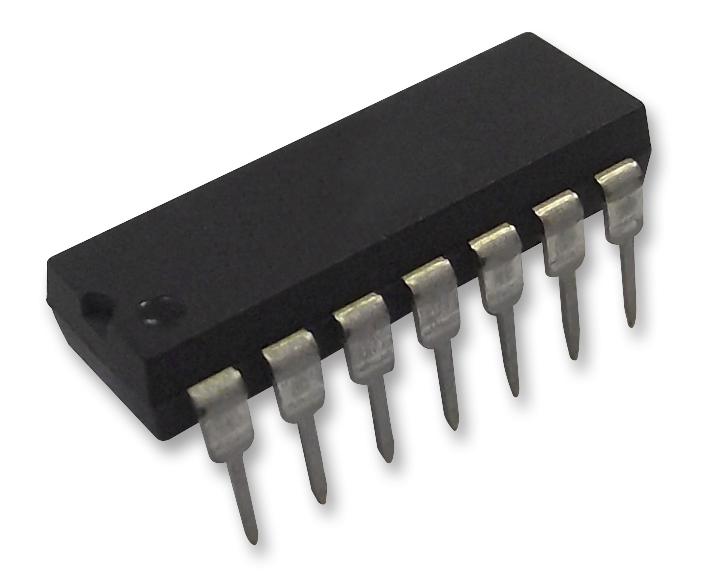

Buy the Buy Maxim MAX251EPD Plus Isolated RS-232 Driver Receiver Part Number MAX251EPD Online
Purchase the Maxim MAX251EPD online today for your serial communication projects. This high-performance isolated RS-232 driver and receiver module features low power consumption, a broad operating temperature range, and supports baud rates up to 19.2k. Compact 14-pin DIP packaging makes installation easy, while its compatibility with standard optocouplers ensures versatile application in industrial, data link, and ground differential bridging scenarios. Improve system reliability and reduce noise with this high-quality, cost-effective solution designed for demanding electronic communications.
Order your Maxim MAX251EPD isolated RS-232 transmitter and receiver today and enhance your serial communication systems with reliable ground isolation.
