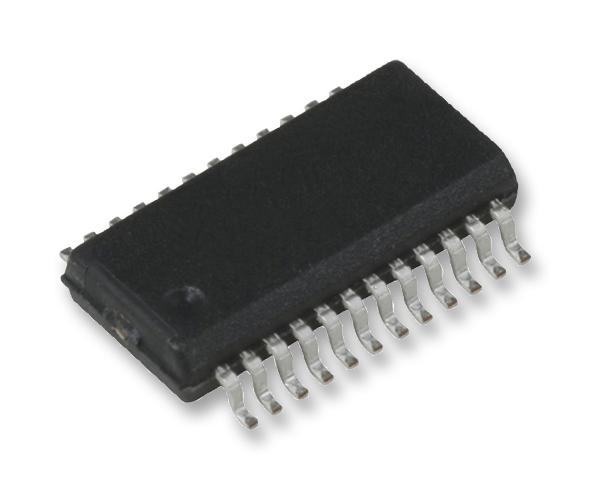

MAXIM INTEGRATED / ANALOG DEVICES MAX6964AEG LED Driver
The MAX6964 is a 17-output LED driver and general-purpose output device designed for industrial applications, featuring adjustable PWM current control, hot-insertion protection, and multiple blinking modes. It supports a serial 2-wire interface (I2C-compatible), allowing seamless integration with microcontrollers for LED backlights, keypad illumination, and status indication. Its open-drain outputs can sink up to 50mA at voltages up to 7V, providing flexible, glitch-free LED control with individual and global intensity settings, making it ideal for demanding industrial environments requiring reliable, customizable LED operation and hot-swap capability.
MAXIM INTEGRATED / ANALOG DEVICES MAX6964AEG LED Driver Specifications:
- Number of outputs: 17 open-drain ports rated at 50mA, 7V
- PWM Max Frequency: 32kHz internal oscillator
- PWM Resolution: 240 steps with master and individual control
- Supply Voltage (V+): 2V to 3.6V
- Operating Temperature Range: -40°C to +125°C
- Maximum GND Current: 350mA total for all outputs
- Input Voltage (SDA, SCL, ADO, BLINK, RST): 0V to 6V in power-down, up to 8V for outputs
- Size: 4mm x 4mm QFN, 0.8mm height
- Supported interfaces: 2-wire I2C, with 4 configurable addresses
- Supports hot insertion and level translation via external resistors
- Maximum power dissipation: 1666mW at Ta=70°C
- Pulse Width Modulation (PWM): Uses a 32kHz oscillator, configurable intensity and blink timing
- Configuration and user registers: 17, allowing flexible control of blink, intensity, and output states
- Fail-safe high-impedance outputs during power-down
Buy the Maxim MAX6964 – Reliable LED Driver for Industrial Applications
Get the Maxim MAX6964 LED driver online today for reliable, flexible LED control in industrial and automation systems. Features include PWM current regulation, blinking modes, and hot-insertion protection, ensuring optimal performance across various applications. Suitable for backlighting, keypad illumination, and status indicators, this compact device supports multiple configurations via an I2C interface, allowing seamless integration into your projects. Purchase now to ensure your industrial applications benefit from high-quality, dependable LED management with easy online ordering.
Order your Maxim MAX6964 versatile LED driver today and enhance your industrial lighting projects with dependable, customizable LED control.
