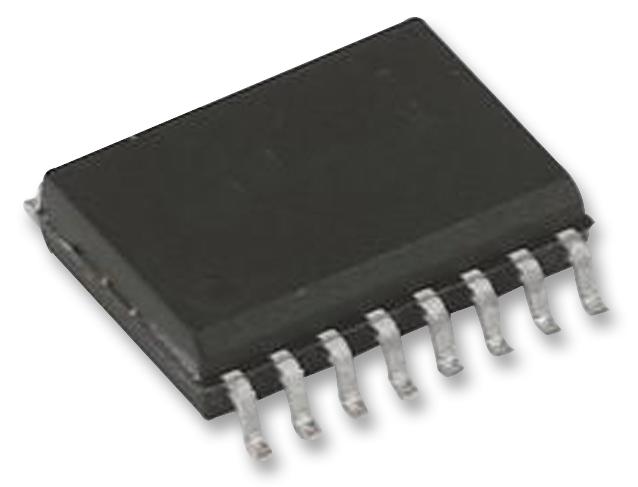

MAXIM INTEGRATED / ANALOG DEVICES MAX732CWE Step-Up PWM Regulator
The MAX732CWE+ is a 12V step-up, current mode PWM regulator in a 16-pin WSOIC package. Operating from 4V to 9.3V input voltage range, it delivers up to 200mA with typical efficiency of 88%. It features a single 50µH inductor, cycle-by-cycle current limiting, overcurrent protection, undervoltage lockout, and a programmable soft start. The device has a fixed 170kHz oscillator frequency, providing easy ripple filtering, and low no-load supply current of 1.7mA. Suitable for flash memory programming, portable devices, and power supplies, it operates from 0°C to 70°C, with standby current of 70µA, and shutdown leakage current of 1µA. Delivery may be delayed due to extended lead times, and it is non-discountable.
MAXIM INTEGRATED / ANALOG DEVICES MAX732CWE Step-Up PWM Regulator Specifications:
- Operating Input Voltage Range: 4V to 9.3V
- Output Voltage: +12V
- Maximum Output Current: 200mA
- Efficiency: Typical 88%
- Inductor: 50µH, low-ESR
- Oscillator Frequency: 170kHz
- Cycle-by-cycle current limiting
- Overcurrent protection, undervoltage lockout
- Soft-start: Programmable via capacitor
- No-load supply current: 1.7mA
- Shutdown current: 1µA
- Standby current: 70µA
- Operating Temperature Range: 0°C to 70°C
- Package: 16-pin WSOIC
- Pin functions include: SHDN (Shutdown), VREF (Reference Voltage), SS (Soft-Start), COMP (Compensation), GND, LX (Switch Node), VOUT (Output Voltage Sense), V+ (Supply Voltage)
Buy the Maxim MAX732CWE – Reliable 12V Step-Up PWM Regulator for Industrial Applications
Acquire the Maxim MAX732CWE+ today to power your portable devices, flash programmers, and DC-DC conversions with high efficiency and reliable performance. This 12V step-up regulator operates from a wide input range of 4V to 9.3V and delivers up to 200mA, ensuring stable output with minimal ripple thanks to its fixed 170kHz oscillator. Its protections include cycle-by-cycle current limiting, overcurrent, undervoltage lockout, and soft-start features that prevent surges. Designed for rugged industrial and consumer applications, it ensures long-lasting, consistent power delivery. Purchase now online for fast delivery and secure your project’s power needs!
Order your Maxim MAX732CWE+ high-efficiency step-up regulator today and ensure your portable and industrial projects operate with stable, reliable power.
