MAXIM INTEGRATED / ANALOG DEVICES MAX22702EVKIT Isolated Gate Driver Evaluation Kit

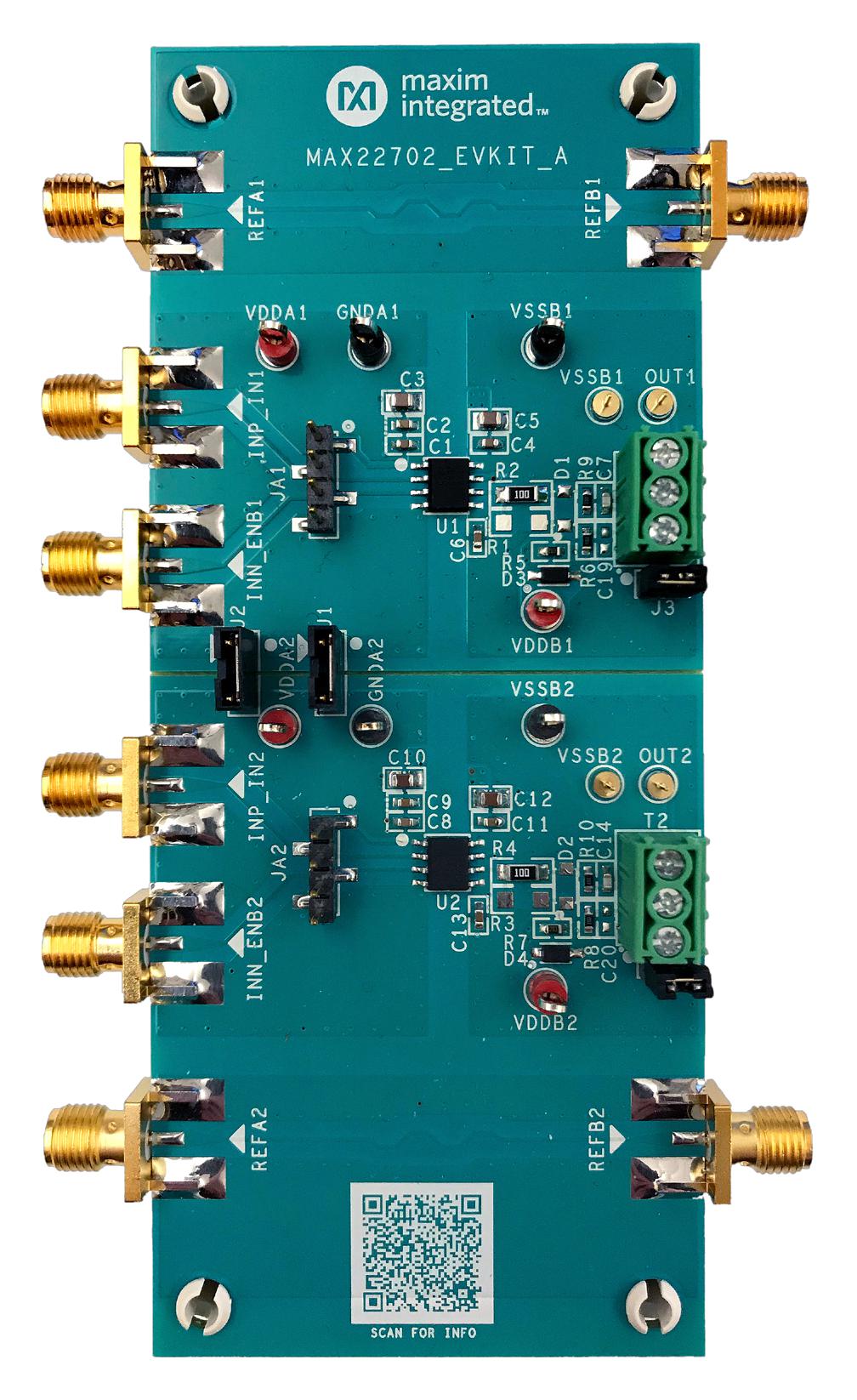

The MAX22702 evaluation kit is designed for testing ultra-high CMTI isolated gate drivers, featuring two identical channels in a compact 8-pin SOIC package. It supports independent power supplies on both sides with ranges from 3V to 36V, and offers options for single-ended or differential inputs, Miller Clamp, or adjustable UVLO. These kits include decoupling capacitors, customizable gate resistors, and calibration channels for precise propagation delay measurements, enabling comprehensive evaluation of device performance in high-voltage and high-frequency applications across a -40°C to +125°C temperature range.
MAXIM INTEGRATED / ANALOG DEVICES MAX22702EVKIT Isolated Gate Driver Evaluation Kit Specifications:
- Power Supply Voltage Range: 3V to 5.5V (A side), 13V to 36V (B side)
- Isolation Voltage: Up to 3kVRwms for 60s
- Operating Temperature: -40°C to +125°C
- Packaging: 8-SOIC Narrow-Body
- Channels: 2 identical channels with propagation delay matching within 2ns
- Input Configurations: Single-ended with enable, or differential
- Features: Miller Clamp, adjustable UVLO, SMA connectors, terminal blocks
- Test points and calibration channels included for precise timing measurement
- Supports various configurations for evaluating switching behavior and isolation performance
- Includes decoupling capacitors, gate resistors, and option for external load capacitor
