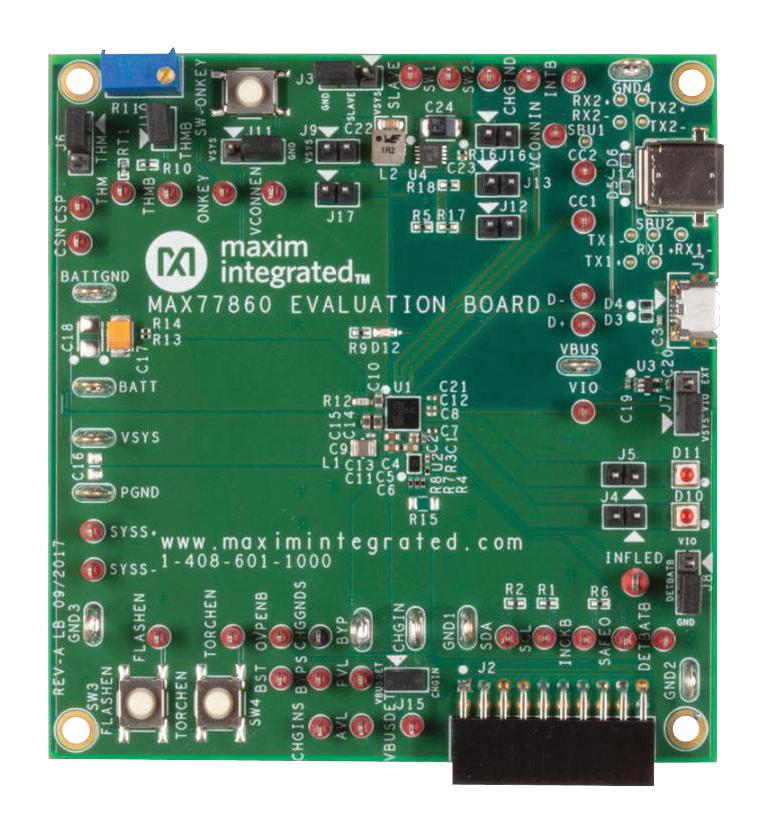

MAXIM INTEGRATED / ANALOG DEVICES MAX77860EVKIT Battery Charger Evaluation System
The MAX77860 evaluation system is a comprehensive, ready-to-use PCB designed to evaluate the MAX77860 single-input switched-mode battery charger. It supports USB Type-C charging up to 3.15A, features reverse boost capability, and includes an I2C interface for detailed control. The kit comprises the evaluation board, a MINIQUSB interface, and necessary accessories. It allows engineers to test input voltage ranges from 4.0V to 13.5V, simulate different charging scenarios, and analyze charger behavior with an intuitive GUI, making it ideal for developing innovative power solutions.
MAXIM INTEGRATED / ANALOG DEVICES MAX77860EVKIT Battery Charger Evaluation System Specifications:
- Input Voltage Range: 4.0V to 13.5V
- Maximum USB Type-C Charging Current: 3.15A
- System Interface: 12C serial interface
- Includes evaluation board, MINIQUSB interface, USB cable
- Supports reverse boost capability
- Operating System Compatibility: Windows 7 or above
- Software: Graphical user interface for control and monitoring
- Power Supply: 15.0V/3A DC power adapter or wall charger
- Dimensions: Compact PCB size, tested and assembled
- Features: USB Type-C detection, safeout LDO, configurable registers
Buy the Maxim Integrated Series Evaluation System: USB-C Battery Charger MAX77860
Purchase the Maxim Integrated MAX77860 evaluation system online today to streamline your power management development. This tested and ready PCB supports USB Type-C charging up to 3.15A, input voltages from 4.0V to 13.5V, and features an intuitive GUI for easy control. Ideal for engineers seeking quick deployment, it includes the evaluation board, interface adapter, and all necessary accessories. Enhance your product design with this reliable and versatile evaluation kit designed for efficient battery charging and system testing.
Buy Maxim Integrated MAX77860 evaluation system now and experience reliable USB-C fast charging and comprehensive power management testing.
