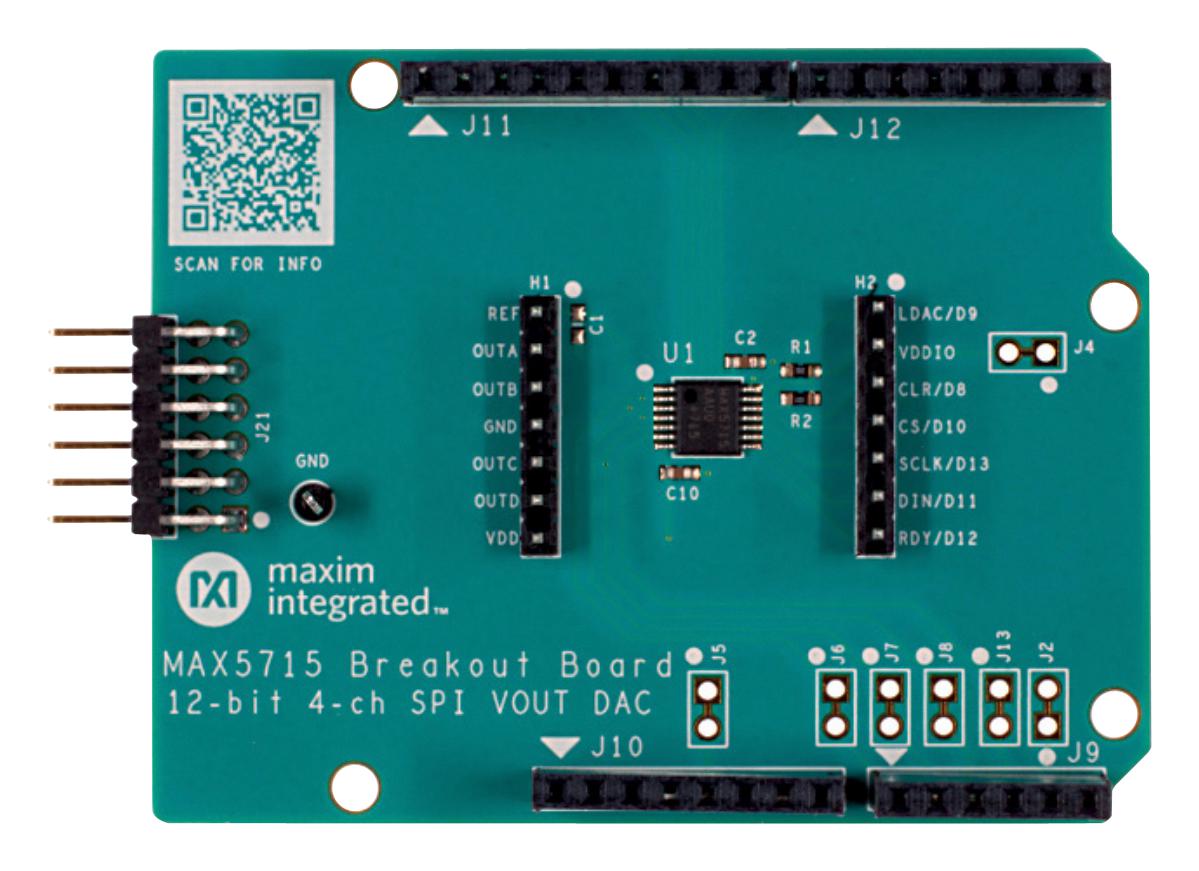

MAXIM INTEGRATED / ANALOG DEVICES MAX5715BOB 12-bit 4-channel DAC
The MAX5715 Breakout Board (BOB) is a compact, 12-bit, 4-channel SPI voltage-output DAC designed for rapid prototyping and development in industrial, medical, and RF applications. It features four analog output channels, supports logic levels from 2.7V to 5.5V, and is compatible with Arduino and mbed.org systems via expansion ports and Pmod interfaces. The board includes schematics, firmware, and design files, making it easy to integrate into various projects for precise voltage control and actuation, with straightforward setup and versatile functionality.
MAXIM INTEGRATED / ANALOG DEVICES MAX5715BOB 12-bit 4-channel DAC Specifications:
- Resolution: 12-bit
- Channels: 4 analog output channels
- Interface: SPI-compatible, supports expanded SPI
- Logic Level Range: 2.7V to 5.5V
- Analog Outputs: Connected to headers OUTA to OUTD
- Reference: Internal or connected via jumper options
- Power Supply: 2.7V to 5.5V DC
- Supported Platforms: Arduino, mbed.org, compatible with various development boards
- Includes schematics, firmware, design files
- Supports precise voltage output for actuation and control applications
- Compact PCB design with headers for easy integration
Buy the Buy Maxim Integrated MAX5715BOB Part Number MAX5715BOB Online
Enhance your projects with the MAX5715 Breakout Board, a highly accurate 12-bit 4-channel voltage-output DAC featuring SPI interface compatible with Arduino and mbed systems. Designed for industrial, medical, and RF applications, this compact board supports logic levels from 2.7V to 5.5V and provides easy integration with schematics, firmware, and design files included. Perfect for precise voltage actuation, control, and rapid prototyping, ensuring reliable performance in demanding electronic environments.
Get Maxim Integrated MAX5715BOB today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX5715BOB?
You can click on the BUY or RFQ button to purchase MAX5715BOB from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX5715BOB?
You can download the MAX5715BOB datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX5715BOB?
MAXIM INTEGRATED / ANALOG DEVICES
