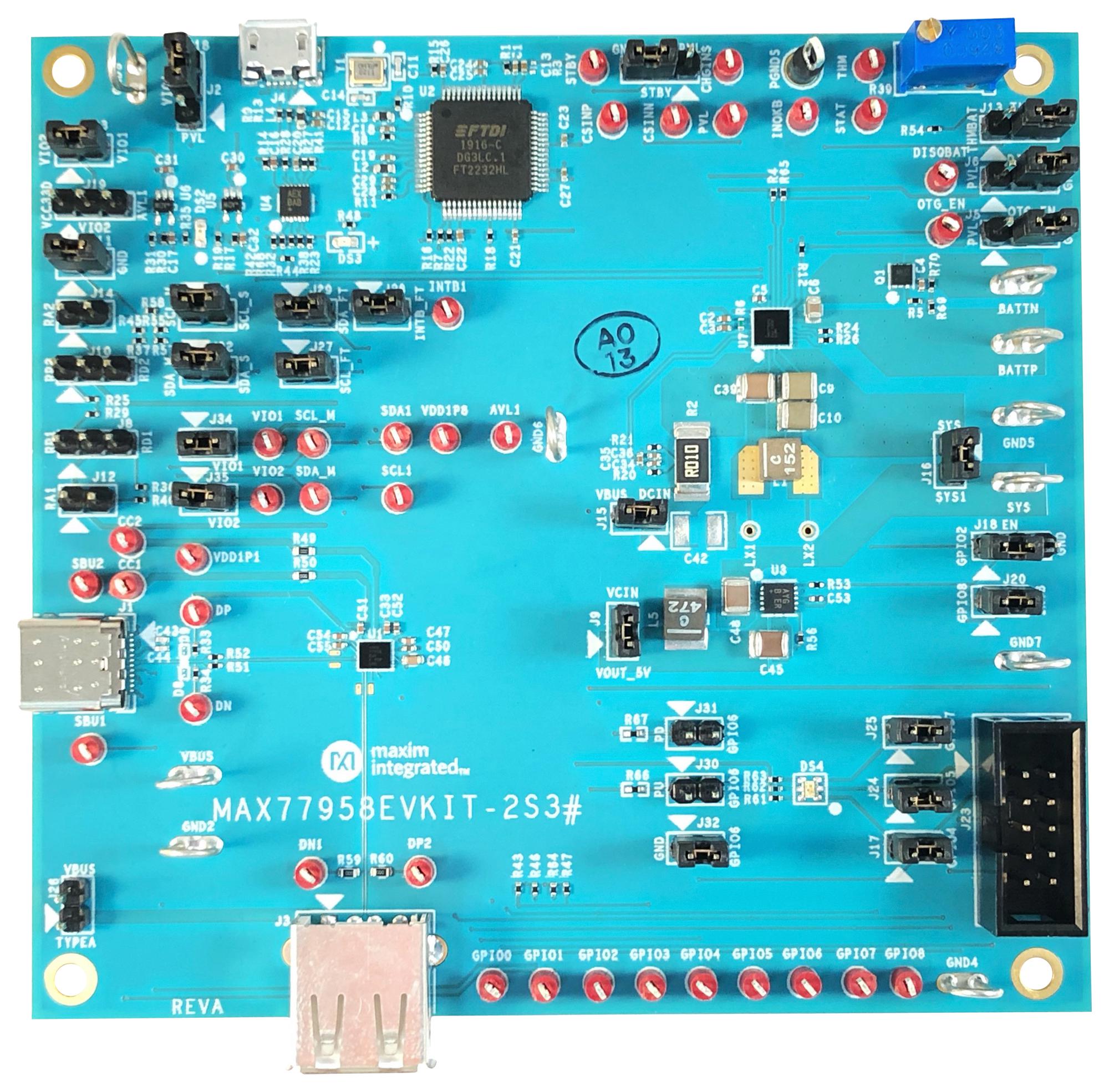

MAXIM INTEGRATED / ANALOG DEVICES MAX77958EVKIT2S3 Power Delivery Controller
The MAX77958 evaluation kit is a comprehensive, fully assembled PCB designed to demonstrate the MAX77958 USB Type-C and Power Delivery Controller features, including detection, communication, role swap, and legacy charger detection. It integrates a buck-boost charger capable of handling 2S Li+ batteries with a programmable input voltage of 3.5V to 23V and a maximum charging current of 3.2A. The kit includes various connectors, customizable firmware, I2C control, and support for fast role swap and debug functions, making it ideal for evaluating USB Power Delivery systems in industrial, consumer, and embedded applications.
MAXIM INTEGRATED / ANALOG DEVICES MAX77958EVKIT2S3 Power Delivery Controller Specifications:
- Charger Input Voltage Range: 3.5V to 23V
- Maximum Charging Current: 3.2A
- Package: WLP30
- Support for USB PD 3.0, Type-C rev1.3
- Integrated buck-boost charger for 2S Li+ batteries
- Compatible with USB Power Delivery and BC1.2 legacy detection
- I2C master control interface with Windows 10 support
- Board dimensions and connector types suitable for industrial environments
- Configurable GPIOs (9 total), GPIO control through firmware
- Polarity, cable orientation detection, Fast Role Swap (FRS), and debug features
- Comprehensive firmware with customization scripting capability
- Includes Micro-B USB interface and various connectors for portable evaluation
- Supports reverse buck mode and Vconn switching with overcurrent protection
- Moisture detection, corrosion prevention features, and fully tested PCB layout
Buy the Maxim Integrated MAX77958 U+2013 Reliable USB Power Controller for Industrial Applications
Enhance your USB power management and PD system evaluation with the MAX77958 evaluation kit. Fully assembled and tested, this kit provides easy control and customization via I2C, supporting USB Type-C, fast role swap, and legacy charger detection. Ideal for industrial, consumer, and embedded applications, it offers a 2S buck-boost charger, configurable GPIOs, and comprehensive firmware updates. Purchase online now to streamline your design process and ensure dependable, industry-grade performance for your projects.
Order your MAX77958 evaluation kit today and leverage its advanced USB Type-C, PD features, and customizable firmware for your industrial development projects.
