MAXIM INTEGRATED / ANALOG DEVICES MAX4602EAE Analog Switch

The MAX4602EAE is a quad SPST CMOS analog switch housed in a 16-pin SSOP package. It supports rail-to-rail analog signals with an off-leakage current of up to 2.5 nA at 85°C. Designed for low-distortion applications, it offers a preferred alternative to mechanical relays in automatic test equipment and current switching scenarios. The device features low power consumption, compact size, and enhanced reliability. All digital inputs have logic thresholds of +0.8V and +2.4V, ensuring compatibility with TTL/CMOS logic levels when powered by ±15V or a single +12V supply. It is suitable for use in PBX systems, audio signal routing, avionics, communication systems, and signal processing. The switch operates with a voltage range from 4.5V to 36V (±4.5V to ±20V), and a temperature range from -40°C to 85°C. It includes four normally open switches with a maximum on-resistance of 4 ohms and an on-resistance match of 0.4 ohms at 25°C, a crosstalk of -60dB at 1MHz, and ESD protection exceeding 2000V. Applications include avionics, communications, networking, and signal processing systems.

View MAX4602EAEDatasheet [pdf]

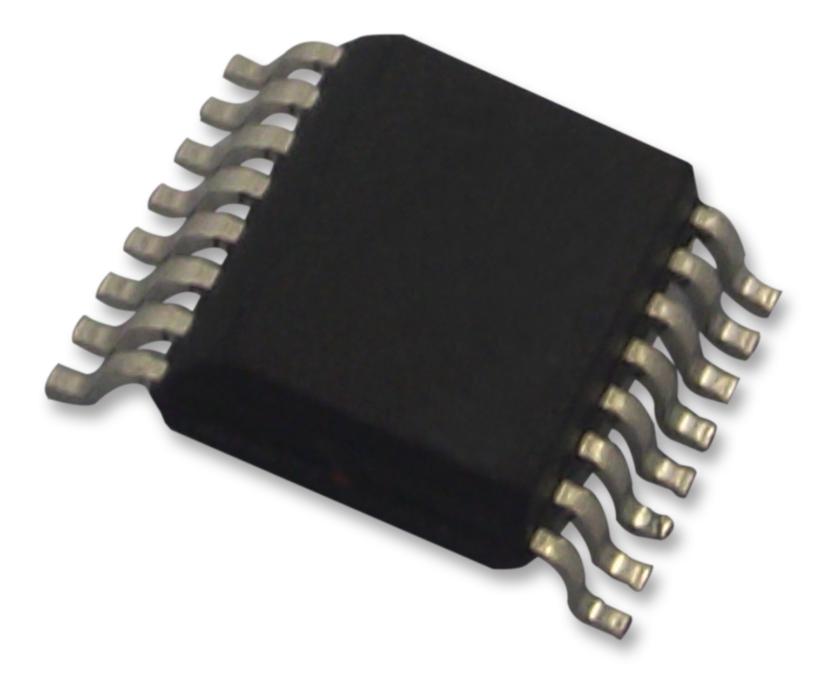

Buy the Maxim Series MAX4602 Analog Switch: MAX4602EAE

Enhance your electronic designs with the Maxim MAX4602EAE quad CMOS analog switch, supporting rail-to-rail signals and low leakage current. Perfect for test equipment, communication, audio routing, and avionics, this device offers excellent on-resistance, minimal crosstalk, and robust ESD protection, ensuring high-performance operation from 4.5V to 36V. Its small SSOP package and TTL/CMOS-compatible control logic make it ideal for space-constrained and demanding applications. Buy online now and upgrade your systems with this reliable, low-distortion analog switching solution.

Buy Maxim MAX4602EAE now and experience unmatched reliability and performance in signal switching applications with low leakage and high precision.
