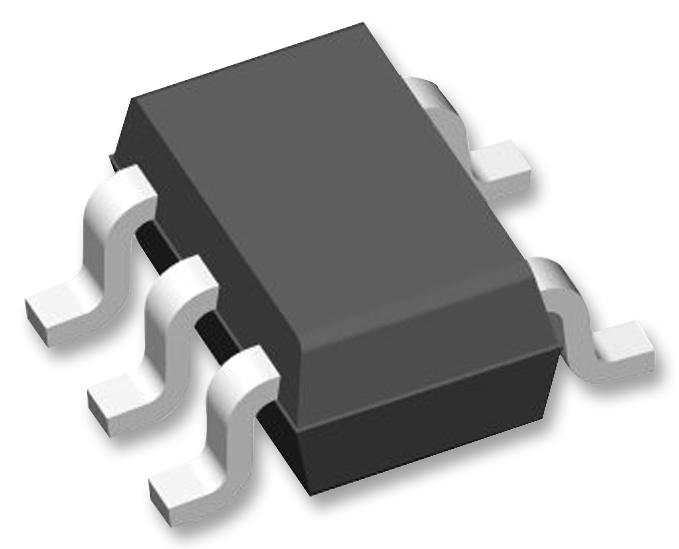

MAXIM INTEGRATED / ANALOG DEVICES MAX8515AEXKT Shunt Regulator
The MAX8515AEXK+T is a wide-input 0.6V shunt regulator designed for isolated DC-DC converters in a 5-pin SC-70 package. It simplifies voltage regulation and overvoltage protection in high-accuracy, low-voltage isolated DC-DC converters with output voltages as low as 0.6V. The device features separated supply voltage and feedback inputs, allowing operation directly from the converter output (1.8V to 18V), or independently from an unregulated supply (1.7V to 28V). It offers an initial output accuracy of 0.5% at 25°C and 1% across -40°C to +85°C. With a low-cost design, it enables low dropout linear regulators when paired with an external NPN transistor, suitable for cost-sensitive applications not requiring overcurrent, short circuit, or overtemperature protection.
MAXIM INTEGRATED / ANALOG DEVICES MAX8515AEXKT Shunt Regulator Specifications:
- Input Voltage Range: 1.7V to 28V
- Output Voltage: 0.6V ±0.5% at 25°C, ±1% from -40°C to +85°C
- Maximum Output Current: 20mA
- Package: 5-pin SC70 and SOT23
- Operating Temperature Range: -40°C to +85°C
- Dynamic Output Impedance: 0.2Ω
- Output Leakage Current: <8pA
- Supply Current in Regulation: 25-40mA
- Overvoltage Protection Trip Threshold: Adjustable via R3 and R4
- Decoupling Capacitor: 1μF from OUT to GND
- Power Dissipation (SC70): 246.9mW at 70°C
- Power Dissipation (SOT23): 727mW at 70°C
- Total Harmonic Distortion and Gain: Stable with external compensation
Buy the Maxim Series MAX8515A Shunt Regulator: 0.6V Isolated DC-DC Converter Protection
Purchase the Maxim MAX8515AEXKT online now for reliable, high-precision voltage regulation in isolated DC-DC converter applications. This compact shunt regulator features adjustable trip thresholds, operates from a wide input voltage range of 1.7V to 28V, and ensures high accuracy with 0.5% initial tolerance at 25°C. Its low dropout design paired with external transistors makes it perfect for low-cost, high-performance power supplies. Enjoy fast delivery, secure checkout, and expert support when buying this space-efficient component online for your industrial, telecom, or cellular base station power systems.
Get Maxim MAX8515AEXKT today—built for precision and long-lasting durability in high-accuracy isolated power systems.
