MAXIM INTEGRATED / ANALOG DEVICES MAX4610ESD Quad Low-Voltage CMOS Analog Switch
The MAX4610ESD is a quad low-voltage CMOS analog switch with four normally open (NO) switches designed for applications in battery-operated equipment, audio/video signal routing, and low-voltage data acquisition systems. Operating from a single 2V to 12V supply, it features guaranteed on-resistance of 100Ω max at 5V supply, with excellent channel matching and flatness over the signal range. Its ultra-low leakage current of 2nA at +85°C ensures high performance in precision circuits, providing reliable signal switching with TTL/CMOS compatibility and ESD protection.
MAXIM INTEGRATED / ANALOG DEVICES MAX4610ESD Quad Low-Voltage CMOS Analog Switch Specifications:
- Supply Voltage Range: 2V to 12V
- On-Resistance: 100Ω max at 5V, 46Ω max at 12V
- On-Resistance Match: 8Ω max
- On-Resistance Flatness: 28Ω max
- Leakage Current: 2nA at Ta = +85°C
- Input Voltage High: 2.4V min, Low: 0.8V max at 5V supply
- Switching Times: Turn-On 15-28ns, Turn-Off 18-30ns
- Bandwidth: Up to 300 MHz
- Operating Temperature Range: -40°C to +125°C
- Package Types: TSSOP, Narrow SO, Plastic DIP, QFN
- Overvoltage Protection: Up to 2kV ESD protection
- Analog Signal Range: 0 to V+
- Digital Inputs: TTL/CMOS logic compatible
- Leakage Current: Typical 2nA at 85°C
- Power Dissipation: Less than 1mW at Ta = 25°C

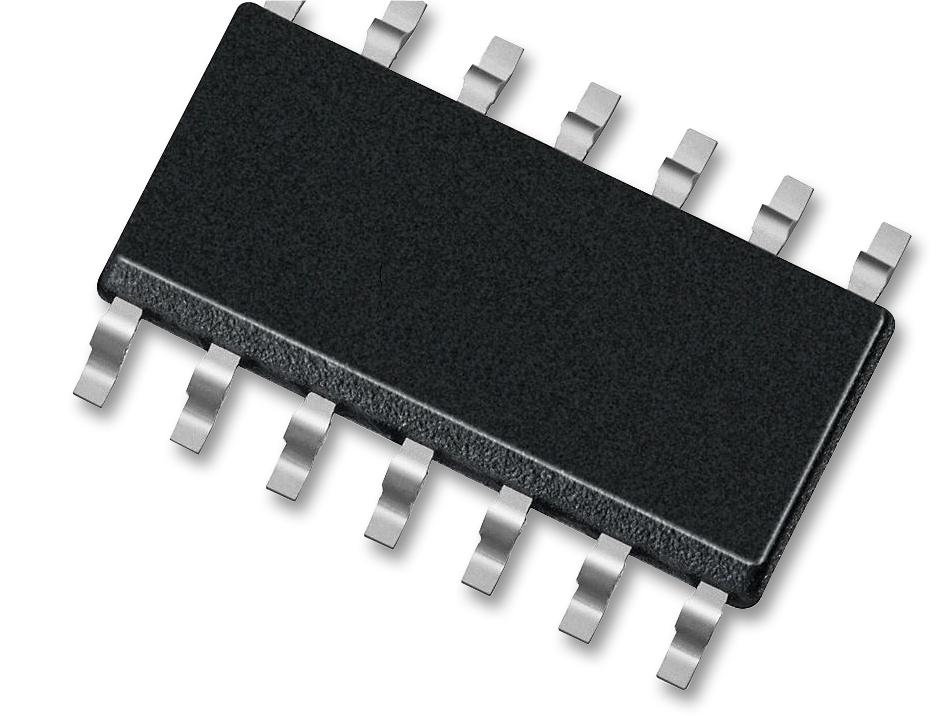

Buy the Maxim Series MAX4610ESD CMOS Analog Switch: MAX4610ESD
Experience reliable signal switching with the Maxim Series MAX4610ESD quad CMOS analog switch. Designed for low-voltage applications, it offers guaranteed on-resistance of 100Ω max at 5V, ultra-low leakage current of only 2nA at +85°C, and excellent channel matching and flatness over the signal range. Suitable for battery-powered equipment, audio/video routing, and data acquisition systems, this device ensures high performance with TTL/CMOS compatibility and robust ESD protection. Perfect for precision switching in compact packages like TSSOP, SO, and QFN, order online now for quick and secure delivery.
Order your Maxim Series MAX4610ESD quad low-voltage CMOS analog switch today and give your projects the dependable performance they deserve.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES MAX4610ESD?
You can click on the BUY or RFQ button to purchase MAX4610ESD from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part MAX4610ESD?
You can download the MAX4610ESD datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of MAX4610ESD?
MAXIM INTEGRATED / ANALOG DEVICES
