MAXIM INTEGRATED / ANALOG DEVICES MAXM22510GLH isolated RS-485 transceiver
The MAXM22510 is a high-performance isolated RS-485 full-duplex transceiver module providing 2500Vrms galvanic isolation between the cable-side and UART-side, with no external components required. It supports data rates up to 500kbps, suitable for industrial automation and building automation applications. The module features integrated DC-DC power isolation, true fail-safe circuitry ensuring logic-high output on short or open inputs, and robust electrostatic discharge (ESD) protection of ±35kV. Operating from a 3.3V supply, it is housed in a 44-pin LGA package and withstands temperature ranges from -40°C to +105°C, making it ideal for harsh environments.
MAXIM INTEGRATED / ANALOG DEVICES MAXM22510GLH isolated RS-485 transceiver Specifications:
- Galvanic Isolation Voltage: 2500Vrms for 60 seconds
- Data Rate: 500kbps (MAXM22510), 25Mbps (MAXM22511)
- Supply Voltage: 3.3V on UART-side
- Transceivers: One driver and one receiver channel
- Receiver Load: 1/4-unit load, supports up to 128 transceivers
- ESD Protection: ±35kV (HBM)
- Isolation exceeding: Repetitive peak voltage 630Vpeak, working voltage 445Vpms
- Temperature Range: -40°C to +105°C
- Package: 44-pin LGA
- Soldering Temperature: 245°C reflow
- Transformer: Ferrite core for EMI reduction
- Protection Features: Thermal shutdown, short-circuit protection on driver outputs
- Compliance: UL1577 and CSA Bulletin 54

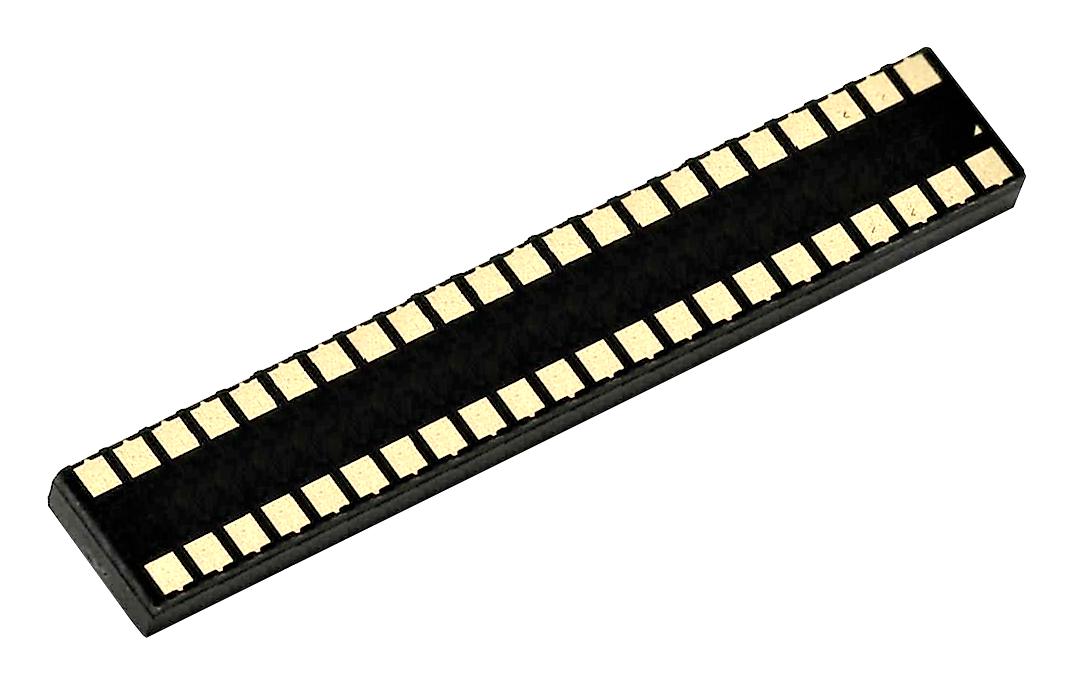

Buy the Buy Maxim MAXM22510 Part Number MAXM22510GLH+ Online
Purchase the MAXM22510 full-duplex isolated RS-485 transceiver module online today. Featuring 2500Vrms galvanic isolation, no external components required, and wide temperature operation from -40°C to +105°C, it is ideal for harsh industrial environments. This compact module supports data rates up to 500kbps and ensures robust, noise-immune communication. Its integrated DC-DC converter provides isolated power, making installation straightforward. Secure your industrial automation or building control systems with this reliable, high-protection transceiver—order now for fast delivery and seamless integration.
Get Maxim MAXM22510 today—designed for industrial automation with 2500Vrms galvanic isolation and full-duplex RS-485 communication.
