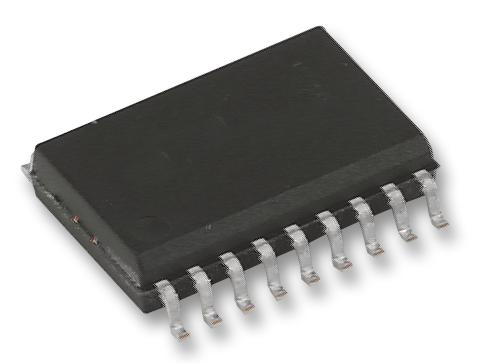

MAXIM INTEGRATED / ANALOG DEVICES MX7224KCWN 8-bit CMOS DAC
The MX7224KCWN+ is an 8-bit CMOS digital-to-analog converter with a built-in output amplifier, housed in an 18-pin WSOIC. It features a double-buffered interface, compatible with TTL and 5V CMOS logic, for simultaneous multi-channel updates. The device provides a output voltage range matching the external reference, supporting single or dual supply operation from 11.4V to 16.5V and -4.5V to -5.5V. It can drive up to 10V into a 2kΩ load, with an unadjusted error of ±2 LSB and a relative accuracy of ±1 LSB, making it ideal for automatic calibration, motion control, and function generators.
MAXIM INTEGRATED / ANALOG DEVICES MX7224KCWN 8-bit CMOS DAC Specifications:
- Resolution: 8 Bits
- Output Voltage Range: matching external reference, up to +10V into 2kΩ load
- Reference Input Voltage Range: +2V to Vpp - 4V
- Supply Voltage: +11.4V to +16.5V, -4.5V to -5.5V (dual supplies)
- Input Impedance: 8kΩ (lowest at code 01010101)
- Output Slew Rate: 10V/μs
- Full-Scale Error: ±2 LSB
- Relative Accuracy: ±1 LSB
- Operating Temperature: 0°C to 70°C
- Power Dissipation: 450mW at 75°C
- Digital Control: TTL and 5V CMOS compatible, active-low CS, WR, LDAC, RESET
- Load Capacitance: typically 25pF to 50pF at reference input
- Input Capacitance: digital inputs 8pF, reference input varies with code
- Short Circuit Current: approx 25mA
- Pin Configuration: 18-pin WSOIC
- Error Tolerance: Unadjusted error within ±2 LSB
Buy the Maxim Series MX7224 Digital-to-Analog Converter: MX7224KCWN
Purchase the Maxim MX7224KCWN online now to benefit from its high-precision 8-bit voltage output, double-buffered interface, and support for single or dual power supplies. Its built-in buffer amplifier delivers an output up to 10V into a 2kΩ load, ideal for automatic calibration, motion control, and functional generators. With low error, excellent accuracy, and TTL/CMOS compatibility, this DAC is designed for reliable, high-performance signal processing. Order today for fast delivery and comprehensive technical support.
Get Maxim MX7224KCWN today—built for precision and long-lasting durability with high-speed output and multiple applications in calibration and control systems.
