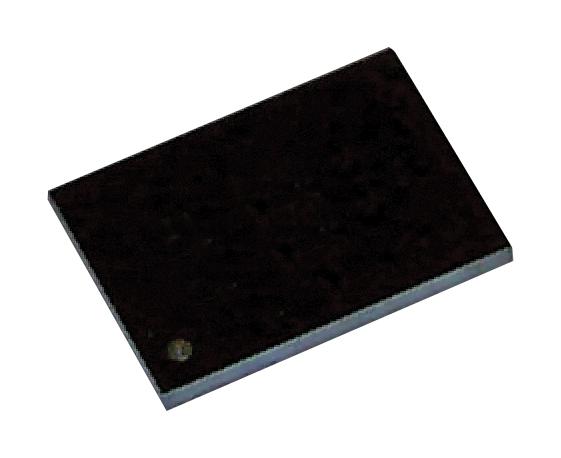

MAXIM INTEGRATED / ANALOG DEVICES MAX11198ATET Dual Channel SAR ADC
The MAX11198 is a high-performance, 16-bit, 2Msps, dual-channel SAR ADC designed for precise data acquisition in industrial and automation applications. It features internal voltage references with buffers, differential inputs, and a compact 16-pin TDFN package, making it ideal for space-constrained designs. Its internal oscillator simplifies timing, and dual outputs enable simultaneous sampling of two channels, providing high throughput and excellent linearity, ideal for encoder, resolver, and motor current sensing systems operating in harsh environments.
MAXIM INTEGRATED / ANALOG DEVICES MAX11198ATET Dual Channel SAR ADC Specifications:
- Resolution: 16 Bits
- Sample Rate: 2 Msps
- Input Voltage Range: VREF to GND, -0.1V to VREF + 0.3V
- Differential Input Range: ±VREF
- Reference Voltage: 2.5V internal, external options available
- Input Capacitance: 10 pF
- Input Leakage Current: 1 pA
- Power Supply Voltage: 3.0V to 5.25V (AVDD), 3.6V (OVDD)
- Power Consumption: ~6.3 mA at typical operation
- Package: 16-pin TDFN, 3mm x 2mm, with exposed pad
- Operating Temperature Range: -40°C to +125°C
- Total Harmonic Distortion (THD): -117 dB
- Spurious-Free Dynamic Range (SFDR): 115 dB
- Input Bandwidth: 50 MHz
- Conversion Time: 500 ns
- Gc: Differential Inputs; Differential, unipolar, bipolar support options
- Interface: SPI-compatible with dual data outputs for simultaneous channels
Buy the Maxim MAX11198 – Reliable Dual-Channel 16-Bit SAR ADC for Industrial Applications
Purchase the Maxim MAX11198 now—this advanced 16-bit, 2Msps dual-channel SAR ADC offers reliable, high-speed performance for industrial automation, encoder systems, and motor current sensing. Small in size with internal reference buffers and differential inputs, it simplifies design and reduces board space. Its internal oscillator sets precise conversion timing, and dual outputs enable simultaneous sampling, making it ideal for demanding real-time measurement applications. Enhance your systems’ accuracy and throughput by ordering online today for fast delivery and integration.
Get Maxim MAX11198 today—built for high-speed data acquisition in industrial automation and motor control systems.
