MAXIM INTEGRATED / ANALOG DEVICES SC2200A00A00 RF Linearizer
The SC2200 is a dual-path RF linearizer optimized for 2G to 4G standards, supporting wide bandwidths from 1.2MHz to 60MHz. Designed for cellular infrastructure applications such as small cells, macro cells, and MIMO systems, it offers adaptive predistortion to minimize amplifier distortion. Featuring a compact 11mm x 11mm package, the device operates efficiently over a frequency range of 698MHz to 2700MHz, with low power consumption. It enhances linearity, reduces system costs, and supports various power amplifier types like GaN and GaAs, ensuring reliable wireless service performance.
MAXIM INTEGRATED / ANALOG DEVICES SC2200A00A00 RF Linearizer Specifications:
- Frequency Range: 698MHz—2700MHz
- Input Signal Bandwidth: 1.2MHz to 60MHz
- Maximum Input Power: -32 dBm to 3 dBm depending on frequency
- Maximum Output Power: 2.5 W (Peak Power)
- Operating Temperature Range: -40°C to +100°C
- Supply Voltage: +1.8V DC
- Power Dissipation: 1.95W at full adaptation
- Integrated Analog RF In/Out: Single-ended inputs, low noise
- Package: 11mm x 11mm SAWN QFN
- Input/Output Voltage: 0.2V to +2.2V RMS
- Environmental Compliance: RoHS, REACH, ISO9001
- Peak Power Handling: Up to +8.5 dBm at maximum power

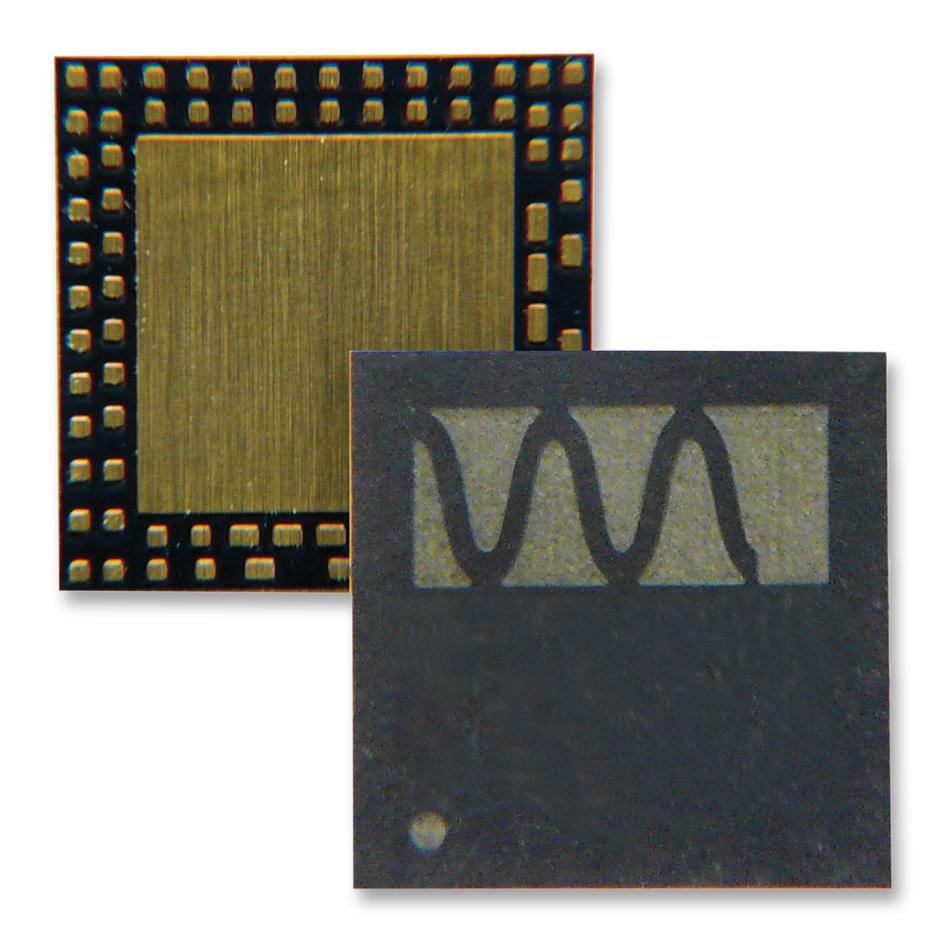

Buy the Maxim SC2200U–Reliable RF Linearizer for Industrial Applications
Upgrade your wireless infrastructure with the Maxim SC2200 dual RF linearizer. Designed for cellular applications, it offers adaptive linearization over extensive frequency ranges, supporting low power consumption and compact size. Ideal for MIMO, small cells, and macro cell deployments, this device improves spectral purity and reduces system costs. Its broad compatibility with various amplifiers and broad bandwidth support makes it a versatile choice for next-generation wireless systems. Purchase online today to accelerate your deployment and ensure reliable, high-quality signal performance.
Order your Maxim SC2200 dual RF linearizer today and enhance your wireless systems' linearity and efficiency with this compact, high-performance solution.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES SC2200A00A00?
You can click on the BUY or RFQ button to purchase SC2200A00A00 from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part SC2200A00A00?
You can download the SC2200A00A00 datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of SC2200A00A00?
MAXIM INTEGRATED / ANALOG DEVICES
