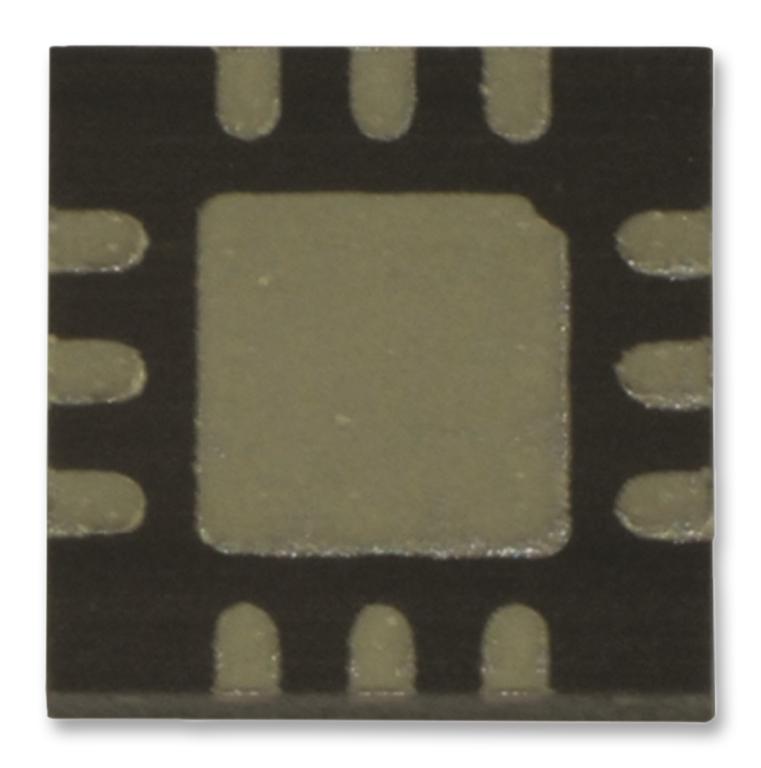

MAXIM INTEGRATED / ANALOG DEVICES MAX3395EETC Level Translator

The MAX3395EETC+ is a 15kV ESD-protected, high drive current, quad-level translator with speed-up circuitry housed in a 12-pin TQFN package. It features internal slew-rate enhancement circuitry with 10mA current sink and 15mA current source drivers, enabling fast data rates while isolating capacitive loads from lower current drivers. This device supports tri-state output mode with thermal shutdown protection and ±15kV Human Body Model (HBM) ESD protection on the VCC side for enhanced durability. It is ideal for data transfer between low-voltage ASICs or PLDs and higher-voltage systems, offering bidirectional level translation without a direction pin. Operating over a voltage range of 1.65V to 5.5V and a temperature range of -40°C to 85°C, it delivers data rates of up to 6Mbps with push-pull drivers and 1Mbps with open-drain drivers. The I/O lines remain high impedance during tri-state, making it suitable for applications such as high-speed bus expansion, open-drain communication, SPI™, I²C, and telecom or networking devices. The device also includes features like low supply current in tri-state mode and thermal shutdown for reliability.

View MAX3395EETCDatasheet [pdf]

Buy the Maxim MAX3395EETC – Reliable Level Translator for Industrial Applications

Enhance your industrial communication systems with the Maxim MAX3395EETC level translator. Featuring ESD protection, speed-up circuitry, and bidirectional translation, it ensures reliable data transfer between low-voltage components and high-voltage systems. Its robust design includes thermal shutdown, low quiescent current, and tri-state support, making it perfect for telecom, networking, and high-speed bus expansion. Buy online today to incorporate this durable, high-performance device into your next project and benefit from Maxim's quality assurance and technical support.

Buy Maxim MAX3395EETC now and experience unmatched reliability and performance in high-speed data transfer applications.
