MAXIM INTEGRATED / ANALOG DEVICES ICL7665ACSAT Microprocessor Voltage Monitor
The ICL7665ACSA+T from Maxim Integrated Products is a microprocessor voltage monitor featuring dual overvoltage and undervoltage detection in an 8-pin NSOIC package. It provides alerts for overvoltage and undervoltage conditions, making it suitable for monitoring microprocessor power. The device has a low quiescent current of 3µA, ideal for battery-powered systems. Its threshold settings and hysteresis are configurable via external resistors for voltages above 1.3V. The integrated reference, two comparators, and hysteresis outputs help reduce circuit size and component count. Typical applications include microprocessor voltage monitoring, low battery detection, power fail and brownout detection, backup switching, power supply fault monitoring, and various alarms. The device operates over a supply voltage range of 2V to 16V, with an operating temperature from 0°C to 70°C. Features include a dual comparator with a precision internal reference, low power CMOS design, threshold accuracy of 2%, and onboard hysteresis outputs.
MAXIM INTEGRATED / ANALOG DEVICES ICL7665ACSAT Microprocessor Voltage Monitor Specifications:
- Supply Voltage Range: 2V to 16V
- Operating Temperature: 0°C to 70°C
- Quiescent Current: 3µA typical
- Threshold Accuracy: 2% (ICL7665A)
- Reference Voltage: 1.3V with external programming
- Inputs: Set1, Set2 for threshold programming
- Outputs: Two open-drain N-channel (OUT1, OUT2) and hysteresis outputs (HYST1, HYST2)
- Pin Count: 8-pin NSOIC package
- Hysteresis: Onboard programmable hysteresis for noise immunity
- Applications: Microprocessor voltage monitoring, low battery detection, power-fail detection, backup switching, fault monitoring, alarms

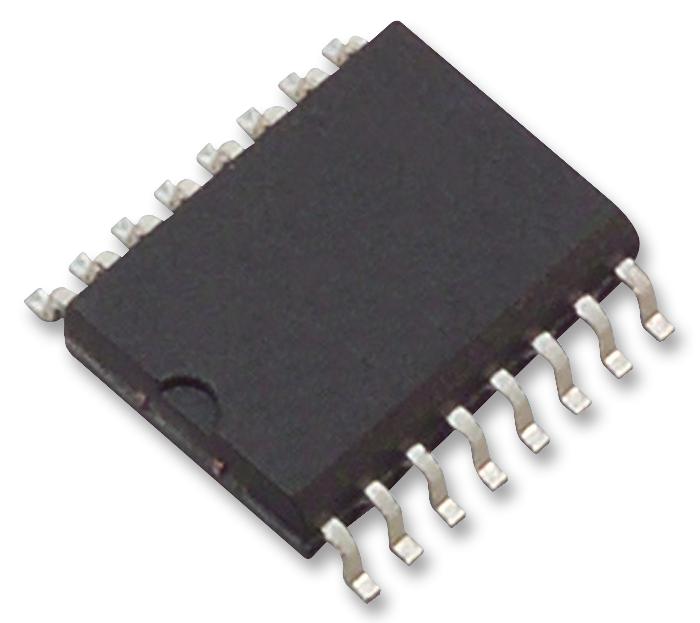

Buy the Buy Maxim ICL7665ACSA+T Microprocessor Voltage Monitor Part Number ICL7665ACSAT Online
Order the Maxim ICL7665ACSA+T online today to enhance your system's reliability. Its dual overvoltage and undervoltage detection, configurable thresholds, and low quiescent current make it perfect for monitoring microprocessor power in battery-powered and line-powered systems. Designed with precision internal references, it simplifies circuitry by reducing component count. Operable from 2V to 16V, this low-power CMOS device ensures accurate detection of voltage conditions, enabling timely alarms and fault prevention across a wide range of applications such as power supply fault monitoring, low-battery detection, and system alarms for industrial and consumer electronics.
Buy Maxim ICL7665ACSA+T now and ensure reliable microprocessor power protection with low power consumption and adjustable thresholds.
Frequently Asked Questions
Where can I buy MAXIM INTEGRATED / ANALOG DEVICES ICL7665ACSAT?
You can click on the BUY or RFQ button to purchase ICL7665ACSAT from an authorized MAXIM INTEGRATED / ANALOG DEVICES distributor.
How do I troubleshoot issues or seek technical support for part ICL7665ACSAT?
You can download the ICL7665ACSAT datasheet or visit the MAXIM INTEGRATED / ANALOG DEVICES website for support.
Who is the manufacturer of ICL7665ACSAT?
MAXIM INTEGRATED / ANALOG DEVICES
