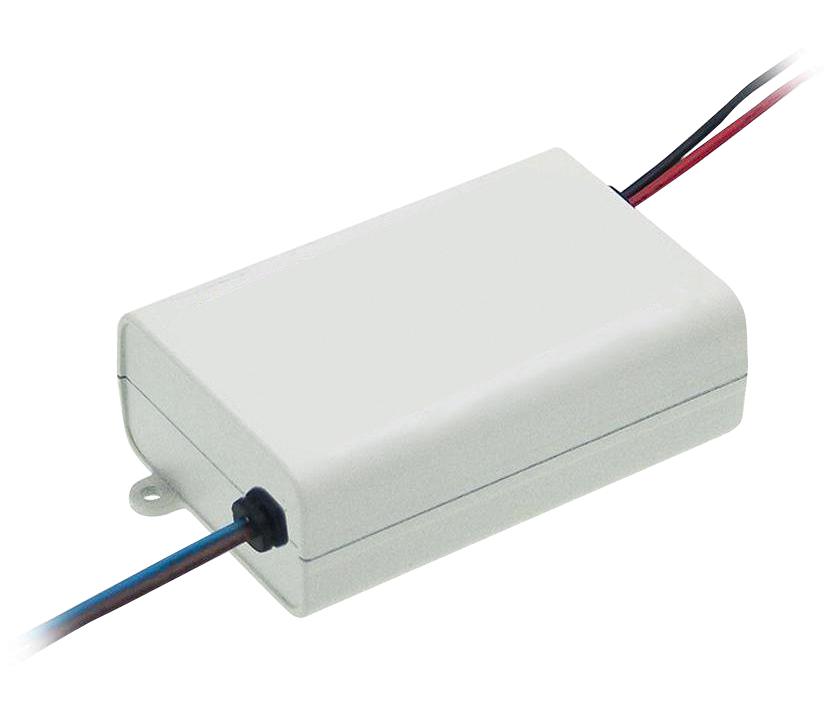

MEAN WELL APC351050 LED Power Supply
The APC-35 series is a compact, reliable 35W single output switching power supply designed for LED lighting and decoration applications. It features universal AC input, withstands 300VAC surge for 5 seconds, and offers protections against short circuit and overvoltage. With a fully isolated plastic casing, IP42 rating, and efficient full load burn-in testing, it ensures durability and safety in various environments. Suitable for LED fixtures such as advertisement displays and decorative lighting, it incorporates low cost and high reliability features, backed by a 2-year warranty for peace of mind.
MEAN WELL APC351050 LED Power Supply Specifications:
- Model: APC-35-1050
- Rated Power: 35W
- Output Voltage Range: 11-33V
- Rated Current: 41050mA
- Ripple & Noise (max.): 360mVp-p
- Voltage Tolerance: +5.0%
- Line Regulation: 1.0%
- Load Regulation: 3.0%
- Efficiency (Typ.): 84%
- Input Voltage Range: 90-264VAC, 127-370VDC
- Frequency Range: 47-63Hz
- AC Current: 0.5A/230VAC, 0.75A/115VAC
- Inrush Current (Typ.): 45A at 230VAC
- Protection: Over Voltage, Short Circuit
- Working Temp.: -30°C to 70°C
- Working Humidity: 20-90% RH non-condensing
- Storage Temp.: -40°C to +80°C
- Vibration: 40-500Hz, 2G
- Safety Standards: UL 94V-0, CSA-C22.2, BIS IS15885, EN 62368-1
- Isolation Resistance: >100M Ohms / 500VDC
- EMC: EN55032, EN61000-3-2/-3/-4/-6/-8/-11
- MTBF: 518.9K hrs
- Dimensions: 150 x 57 x 29.5 mm
- Packaging: 72 pcs per 14kg
Buy the MW Series LED Power Supply APC-35-1050: 35W 11-33V
Purchase the MW Series APC-35-1050 LED power supply online today and enjoy high reliability, compact design, and excellent efficiency. This 35W unit supports voltage output from 11V to 33V, making it ideal for LED signage, decoration, and lighting applications. Its IP42 rated fully isolated plastic case provides protection against dust and water splashes, ensuring safe operation in various environments. With surge withstand capability and overvoltage protection, it guarantees safety and durability. Benefit from quick delivery and trusted quality by ordering online now for your LED lighting needs.
Order your MW Series APC-35-1050 today and ensure reliable, efficient power for your LED projects and lighting fixtures.
