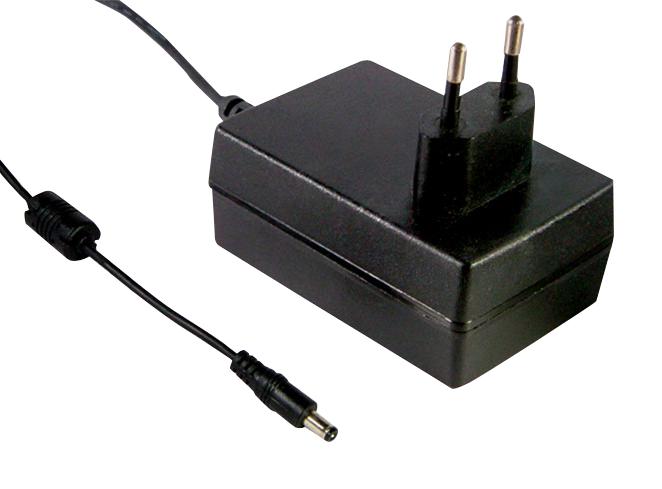

MEAN WELL GSM18E12P1J Medical Power Adapter
GSM18E12P1J is a high-reliability, 18W medical power adaptor designed for portable and miniature medical devices. This wall-mounted unit features an input range of 80VAC to 264VAC, with a 12V DC output at 1A rated current. It complies with international medical safety standards, including 2 x MOPP isolation and low leakage current below 50A, ensuring patient safety. The adaptor boasts up to 88% efficiency, ultra-low no-load power consumption of less than 0.1W, and conforms to EU ErP and CoC V5 standards. Its fully enclosed flame-retardant case and optional lockable DC plug provide durability and safety for medical applications.
MEAN WELL GSM18E12P1J Medical Power Adapter Specifications:
- Input Voltage: 80~264VAC, 47~63Hz
- Output Voltage: 12V DC
- Rated Current: 1A
- Rated Power: 18W
- Ripple & Noise (max.): 120mVp-p
- Voltage Tolerance: ±3.0%
- Line Regulation: 1.0%
- Load Regulation: 3.0%
- Efficiency: Up to 88%
- No-load Power Consumption: < 0.1W
- Leakage Current: < 50A
- Working Temperature: -25°C ~ +60°C (derating applies)
- Protection: Overload, Overvoltage, Short circuit, Hiccup mode
- Dimensions: 79*54*33mm
- Certifications: TUV EN60601-1, EMC Class B
- Housing: Fully enclosed plastic case with flame retardant material
- Operating Humidity: 20% ~ 90% RH
- Storage Temperature: -40°C ~ +85°C
Buy the High Reliability Series Medical Power Supply: GSM18E12P1J
Order the GSM18E12P1J medical power adaptor online today. This 18W high-reliability unit features a 12V output with 1A current, efficiency up to 88%, and ultra-low no-load power consumption. Designed for portable medical devices, it complies with international safety standards including 2 x MOPP isolation and low leakage current below 50A. Encased in a flame-retardant plastic housing and equipped with optional lockable DC plug, ensuring durability, safety, and energy savings for medical applications.
Get GSM18E12P1J today—built for precision, safety, and long-lasting durability in medical devices.
Frequently Asked Questions
Where can I buy MEAN WELL GSM18E12P1J?
You can click on the BUY or RFQ button to purchase GSM18E12P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM18E12P1J?
You can download the GSM18E12P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM18E12P1J?
MEAN WELL
