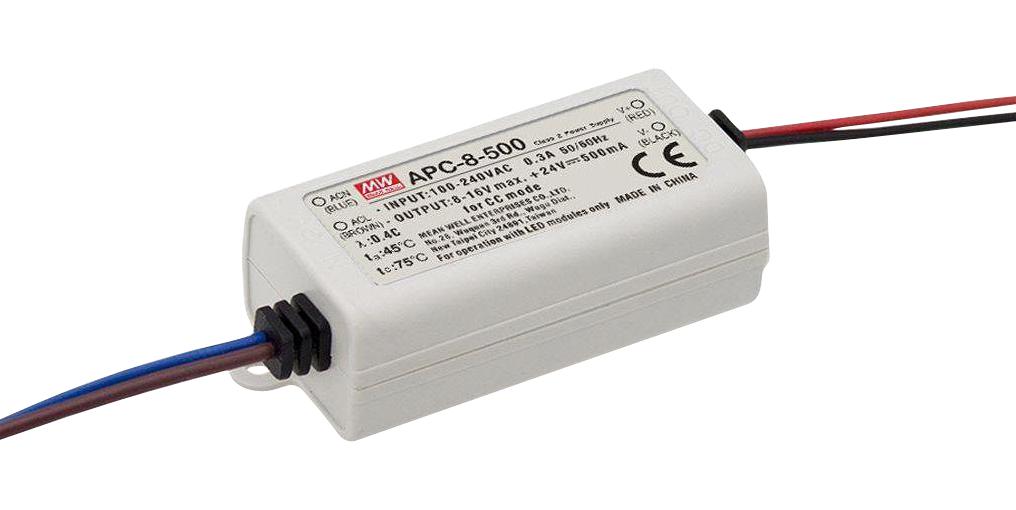

MEAN WELL APC8500 LED Power Supply
The APC-8 series is an 8W AC/DC constant current LED power supply designed for low wattage LED applications. It offers four models with output currents of 250mA, 350mA, 500mA, and 700mA, accepting a full input range of 90~264VAC. Featuring a Class II plastic enclosure, IP42 rating, and no F G pin, it ensures safety and durability. Ideal for LED decoration and signage, it provides stable operation, high efficiency, and protection against shorts. Compact, reliable, and suitable for entry-level LED lighting projects.
MEAN WELL APC8500 LED Power Supply Specifications:
- Output Power: 8W
- Output Current Options: 250mA, 350mA, 500mA, 700mA
- Input Voltage Range: 90~264VAC, 127~370VDC
- Output Voltage Range: 6~38V depending on model
- Ripple & Noise: 250mVp-p to 350mVp-p
- Efficiency: 80% to 82.5% (typical)
- Operating Temperature: -30°C to 70°C
- Dimension: 60*30*23.5mm (L*W*H)
- Protection: Short circuit, overload
- Isolation Voltage: 3.75KVAC (P-O/P)
- Certifications: UL8750, CSA, BIS, EAC
- Vibration Resistance: 10~500Hz, 2G
- Storage Temperature: -40°C to +80°C
- Humidity: 20~90% RH, non-condensing
- MTBF: 2276 hours
- Protection Mode: Hiccup
- Full load burn-in tested
- Cooling: Free air convection
Buy the APC Series 8W – Reliable LED Power Supply for Industrial Applications
Purchase the APC-8 series LED power supply online today to ensure your LED lighting projects benefit from high reliability, excellent efficiency, and safety features. Designed for low wattage LED applications, it supports full input range AC power and offers multiple output current options for versatile use. Its compact size fits easily into various installations, while features like short circuit protection and full load burn-in testing guarantee durability and safety. Upgrade your lighting system now with this dependable power source for energy-efficient illumination.
Buy APC-8 series 8W LED power supply now and enjoy reliable performance, high efficiency, and compact design for your LED lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL APC8500?
You can click on the BUY or RFQ button to purchase APC8500 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part APC8500?
You can download the APC8500 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of APC8500?
MEAN WELL
