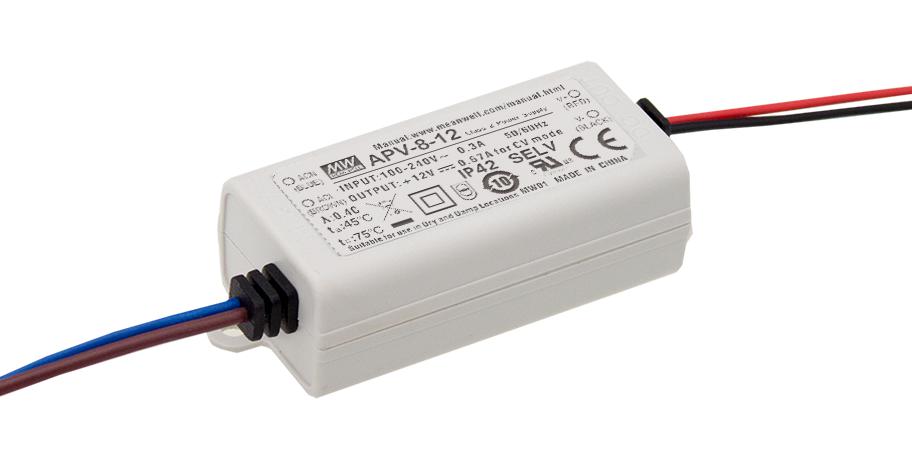

MEAN WELL APV812 LED Power Supply
The APV-8 series is an 8W single output switching power supply designed for LED lighting applications. It features a constant voltage mode with models offering 5V, 12V, and 24V outputs, suitable for indoor LED signage and decorative lighting. It accepts input voltages from 90 to 264VAC, has high efficiency up to 81%, and includes protections such as short circuit, overload, and over-voltage. Its compact, plastic, flame-retardant enclosure ensures reliability and safety, making it ideal for entry-level LED projects with high safety and performance standards.
MEAN WELL APV812 LED Power Supply Specifications:
- Output Power: 8W
- Output Voltage: 5V, 12V, 24V
- Rated Current: 1.44A (5V), 0.67A (12V), 0.344A (24V)
- Ripple & Noise: 250-300mVp-p
- Voltage Tolerance: +5.0%
- Line Regulation: +1.0%
- Load Regulation: 4.2%
- Efficiency (Typ.): 74% (5V), 80% (12V), 81% (24V)
- Input Voltage Range: 90~264VAC
- Frequency Range: 47~63Hz
- Input Current: 0.15A/230VAC
- Inrush Current (Typ.): 70A at 230VAC
- Leakage Current: 0.25mA/240VAC
- Working Temperature: -30~+70°C
- Safety Standards: UL8750, EN61347-2-13
- Dimensions: 60*30*22 mm
- Certifications: UL, CSA, EN55015, EN61000-3-2
- Isolation Voltage: 3.75KVAC (I/P-O/P)
Buy the APV Series LED Power Supply: APV-8-12
Purchase the APV-8 series LED power supply online today and enjoy dependable performance for your LED signage and decorative lighting projects. With universal input voltage, high efficiency, and comprehensive protections including short circuit, overload, and over-voltage, this compact and flame-retardant power supply ensures safety and durability. Ideal for entry-level LED applications, it offers reliable, long-lasting power, easy installation, and certification compliance. Elevate your LED projects with this high-quality, economical solution available for online purchase now.
Get APV-8 series LED power supply today—designed for reliable indoor LED lighting with compact size and high efficiency.
Frequently Asked Questions
Where can I buy MEAN WELL APV812?
You can click on the BUY or RFQ button to purchase APV812 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part APV812?
You can download the APV812 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of APV812?
MEAN WELL
