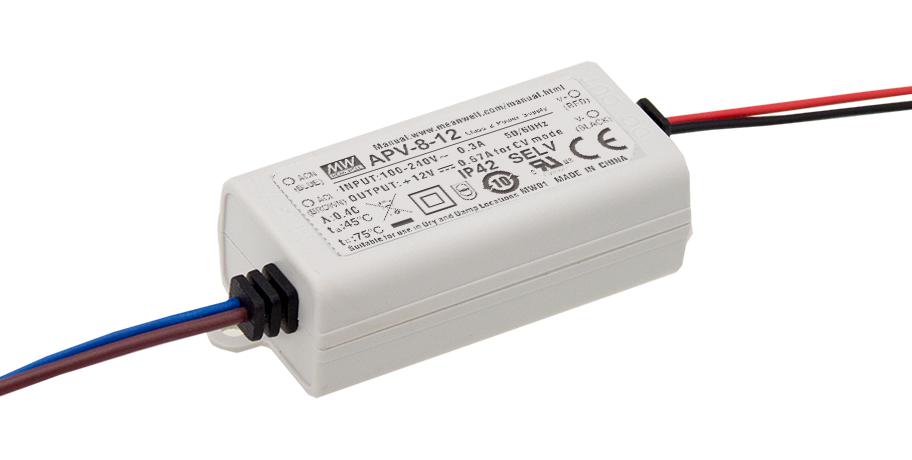

MEAN WELL APV824 LED Power Supply
The APV-8 series is an 8W single output switching power supply designed for LED lighting applications. It features a constant voltage mode, accepting a full range of AC input 90~264VAC, and provides outputs of 5V, 12V, or 24V optimized for LED signage, decorative lighting, and indoor LED fixtures. Encased in a flame-retardant plastic enclosure, it ensures safety and durability without a grounded connection. The device offers protections against short circuits, overload, and overvoltage, operates efficiently up to 80%, and conforms to safety standards UL, CSA, and EN60950. Compact and reliable, it is ideal for entry-level LED projects.
MEAN WELL APV824 LED Power Supply Specifications:
- Input Voltage Range: 90~264VAC, 127~370VDC
- Output Voltages: 5V, 12V, 24V
- Rated Power: 8W
- Rated Current: 1.44A at 5V, 0.67A at 12V, 0.344A at 24V
- Ripple & Noise: max. 250mV/p-p for 5V and 12V outputs, 300mVp-p for 24V
- Voltage Tolerance: +5.0%
- Line Regulation: ±1.0%
- Load Regulation: ±4.0%
- Efficiency: up to 80%
- Protections: Short circuit, Overload, Overvoltage
- Operating Temperature: -30°C to +70°C
- Dimensions: 60mm x 30mm x 22mm
- Certifications: UL, CSA, EN60950, EN55015, EN61000-3-2/3
Buy the APV Series 8W Power Supply: APV824
Enhance your LED lighting setup with the APV824 power supply, offering reliable 8W output across 5V, 12V, or 24V variants. Its universal AC input (90~264VAC) ensures compatibility worldwide, while its compact, flame-retardant enclosure provides durability and safety. Featuring protections for short circuit, overload, and overvoltage, it guarantees safe operation in indoor environments. Ideal for signage, decorative, and office LED lighting, this power supply combines efficiency, reliability, and ease of installation—buy online today to power your LED applications with confidence.
Buy APV824 now and experience unmatched reliability and performance for your LED lighting projects.
Frequently Asked Questions
Where can I buy MEAN WELL APV824?
You can click on the BUY or RFQ button to purchase APV824 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part APV824?
You can download the APV824 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of APV824?
MEAN WELL
