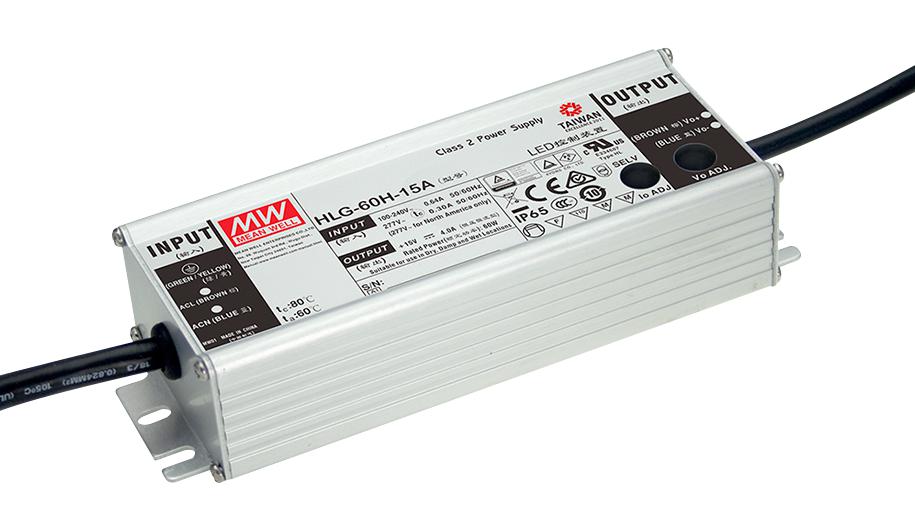

MEAN WELL HLG60H36A LED Driver
The HLG-60H series is a 60W AC/DC LED driver featuring dual mode constant voltage and constant current outputs, suitable for indoor and outdoor use. It operates from 90 to 305VAC, with models providing rated voltages between 15V and 54V. The series boasts efficiencies up to 90.5%, fanless operation, and a rugged metal housing with IP67/IP65 ratings for protection against dust and water. It offers multiple dimming options, adjustable outputs, a lifetime exceeding 62,000 hours, and a 7-year warranty, making it ideal for LED street, high-bay, greenhouse, and flood lighting applications.
MEAN WELL HLG60H36A LED Driver Specifications:
- Power: 60W
- Input Voltage: 90-305VAC
- Output Voltage: 15V to 54V (models), adjustable via potentiometer
- Rated Current: 4A, 3A, 2.54A, 2A, 1.78A, 1.458A, 1.38A, 1.458A depending on model
- Efficiency: Up to 90.5%
- Ripple & Noise: Max 150-300mVp-p depending on model
- Protection: Over current, over voltage, over temperature, short circuit
- Ingress Protection: IP65/IP67, suitable for indoor and outdoor installations
- Operating Temperature: -40°C to +80°C
- Lifetime: >62,000 hours
- Dimming: 1-10VDC, 10V PWM, resistance, optional timer dimming
- Dimensions: 171.6mm x 36.8mm x 30mm
- Certifications: UL, CSA, ENEC, CB, TUV, CE, IP65/IP67
- Mounting: Metal housing, suitable for varied environments
Buy the MEAN WELL Series 60W LED Driver: HLG-60H36A
Purchase the MEAN WELL Series 60W LED Driver HLG-60H36A online today and enjoy superior efficiency, rugged IP65/IP67 protection, and versatile dimming options. Designed for both indoor and outdoor LED lighting applications, it offers adjustable voltage and current, long lifetime over 62,000 hours, and multiple safety features. Reliable and energy-efficient, this driver is perfect for street lighting, high bays, floodlights, and greenhouse illumination. Order now and give your projects dependable, high-quality lighting performance.
Order your MEAN WELL Series 60W LED Driver HLG-60H36A today and ensure reliable, efficient lighting for your indoor and outdoor projects.
Frequently Asked Questions
Where can I buy MEAN WELL HLG60H36A?
You can click on the BUY or RFQ button to purchase HLG60H36A from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part HLG60H36A?
You can download the HLG60H36A datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of HLG60H36A?
MEAN WELL
