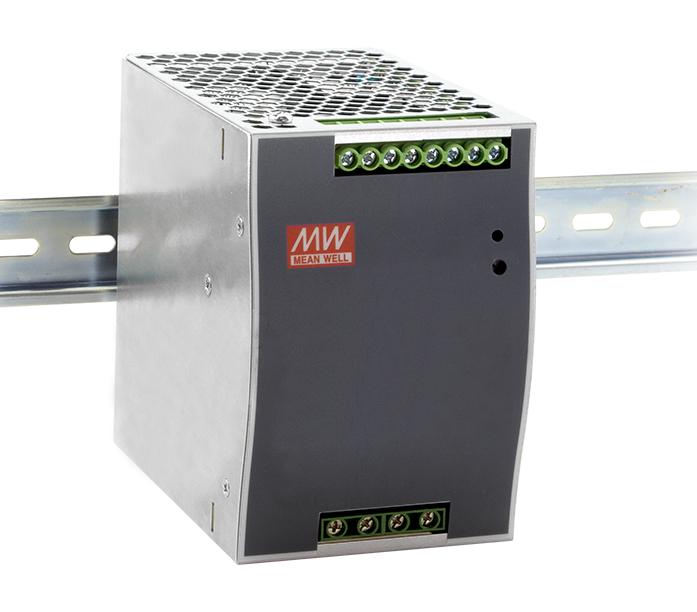

MEAN WELL DDR480C12 DC-DC Converter
The DDR-480 series is a 480W DIN rail-mounted DC-DC converter designed for industrial and railway control applications. Featuring a slim width of 85.5mm and fanless cooling, it supports wide input ranges (16.8-33.6V, 33.6-67.2V, 67.2-154V) and adjustable outputs for 12V, 24V, and 48V. It complies with EN50155 and EN45545-2 standards, offers -40°C to +80°C operating temperature, 150% peak load capacity, and comprehensive protections including short circuit, overload, and reverse polarity. Its robust design ensures high EMI immunity and reliable performance in harsh environments, making it ideal for transportation, industrial automation, and communication systems.
MEAN WELL DDR480C12 DC-DC Converter Specifications:
- Power: 480W
- Input Voltage Range: 16.8-33.6V, 33.6-67.2V, 67.2-154V
- Output Voltage Options: 12V, 24V, 48V (adjustable)
- Rated Current: 20A for 12V, 10A for 24V, 10A for 48V
- Peak Load Capacity: 150% (for 5 seconds)
- Dimensions: Width 85.5mm, Height 125.2mm, Depth 128.5mm
- Operating Temperature: -40°C to +80°C
- Isolation Voltage: 4KVdc (I/O), reinforced
- Cooling: Fanless air convection
- Protections: Short circuit, overload, over voltage, over temperature, reverse polarity, input under-voltage
- Efficiency: Up to 93%
- EMC Standards: EN55032 (Class A/B), EN61000 series
- Vibration & Shock Resistance: IEC61373 compliant
- MTBF: 280,000 hours (Telcordia)
- Certifications: UL62368-1, IEC 62368-1, EN45545-2, EN50155
- Installation: DIN rail TS-35/7.5 or TS-35/15
Buy the Buy Mean Well DDR-480 Series DC-DC Converter Part Number DDR480C12 Online
Purchase the DDR-480 series DC-DC converter online today to ensure high efficiency, wide input voltage, and reliable performance in demanding industrial and transportation applications. This robust, fanless design supports operating temperatures from -40°C to +80°C, includes comprehensive protections, and complies with EN50155 and EN45545-2 standards. Perfect for industrial automation, railway control, and communication systems, ordering online guarantees quick delivery, expert support, and the assurance of genuine quality for your critical projects.
Buy Mean Well DDR480C12 now and experience unmatched reliability and performance in industrial control and railway systems.
Frequently Asked Questions
Where can I buy MEAN WELL DDR480C12?
You can click on the BUY or RFQ button to purchase DDR480C12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DDR480C12?
You can download the DDR480C12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DDR480C12?
MEAN WELL
