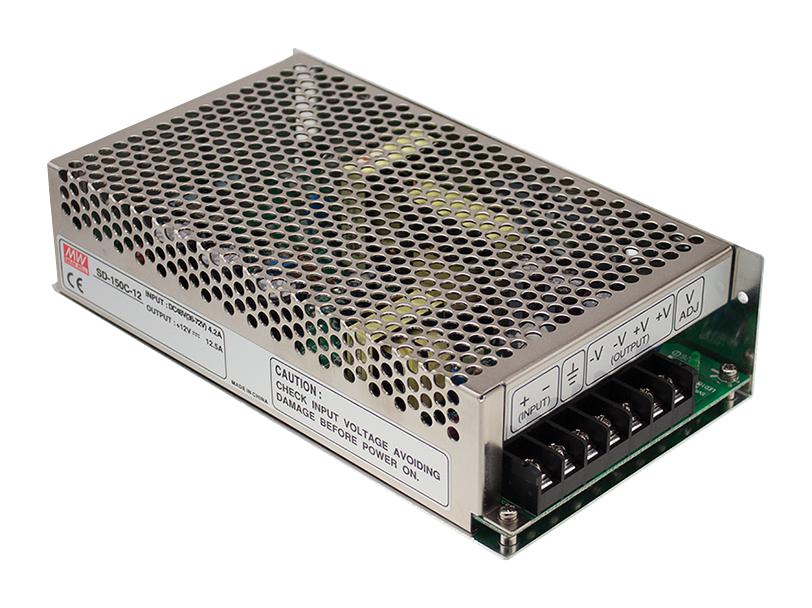

MEAN WELL SD150D12 Industrial Power Converter
The SD-150D-12 is a 150W single output DC-DC converter designed for reliable power supply in industrial applications. It features a wide input voltage range of 36 to 72VDC, high efficiency up to 82%, and protections including short circuit, overload, and overvoltage. With 1500VAC isolation, built-in EMI filter, low ripple noise, and robust construction, it supports operating temperatures from -10°C to +80°C. Suitable for automation, industrial controls, and power systems, this converter ensures high reliability and long service life under harsh conditions.
MEAN WELL SD150D12 Industrial Power Converter Specifications:
- Power Rating: 150W
- Input Voltage Range: 36~72VDC
- Output Voltage: 12V
- Rated Current: 12.58A
- Ripple & Noise: 120mVp-p
- Voltage Tolerance: +1.0%
- Line Regulation: ±0.05%
- Load Regulation: ±0.05%
- Efficiency: 82% (typical)
- Operating Temperature: -10°C to +80°C
- Isolation Voltage: 1500VAC
- Dimensions: 99.5mm x 50mm x 110mm
- Vibration: 2G, 40-500Hz
- Certification: IEC60950-1, CB approved, UL, CE
- Protection: Short circuit, Overload, Overvoltage in Hiccup mode
Buy the Buy MEAN WELL DC-DC Converter Series SD-150D-12 Part Number SD150D12 Online
Enhance your industrial power solutions by purchasing the MEAN WELL SD-150D-12 150W DC-DC converter online. Designed for reliable and efficient operation, it features a wide input range of 36 to 72VDC, high efficiency up to 82%, and comprehensive protections including short circuit, overload, and overvoltage. Its 1500VAC isolation ensures safety and noise filtering reduces ripple for stable output. Trusted by professionals in automation and manufacturing, this converter guarantees long-term performance in demanding environments. Buy now for dependable power supply solutions that meet industrial standards.
Order your MEAN WELL Series SD-150D-12 150W DC-DC Converter today and ensure your industrial projects benefit from reliable power and high durability.
Frequently Asked Questions
Where can I buy MEAN WELL SD150D12?
You can click on the BUY or RFQ button to purchase SD150D12 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SD150D12?
You can download the SD150D12 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SD150D12?
MEAN WELL
