MEAN WELL DKMW06F05 DC-DC Regulator Module
The DKMW06F05 series is a 6W isolated and regulated DC-DC converter module designed in a compact 1x1 inch DIP package. It features an ultrawide 4:1 input voltage range of 9-36V or 18-75V, high efficiency up to 86%, and excellent thermal performance with a wide operating temperature from -40°C to +85°C. The device provides 1.5KVDC I/O isolation, protections against short circuit, overload, overvoltage, input under-voltage, and meets EN55032 radiated Class A standards without additional components. Suitable for industrial control, telecommunication, distributed power, and automation applications, it ensures reliable power conversion with minimal external components, integrated safety features, and compact size.
MEAN WELL DKMW06F05 DC-DC Regulator Module Specifications:
- Input Voltage Range: 9~36V or 18~75V ultrawide 4:1 input ratio
- Output Voltage Options: 3.3V, 5V, 9V, 12V, 15V, 24V for single output; +5V, +12V, +15V, +24V for dual outputs
- Maximum Power: 6W
- Efficiency: Up to 86%
- Operating Temperature: -40°C to +85°C
- Input Surge Voltage: 50V for 24V models, 100V for 48V models (100ms max)
- Ripple & Noise: 60mVp-p (typical), 85mVp-p (max.)
- Line Regulation: 0.2%, Load Regulation: ±1% (single), ±1-1.5% (dual)
- Switching Frequency: 300KHz
- Isolation Voltage: 1.5KVDC I/O Isolation
- Protections: Short circuit (continuous), Overload, Overvoltage, Input under voltage
- Cooling Method: Free-air convection
- Case Material: Black coated copper with non-conductive base
- Dimensions: 25.4mm x 25.4mm x 11.7mm
- Soldering Temperature: Max 260°C, 1-3 seconds

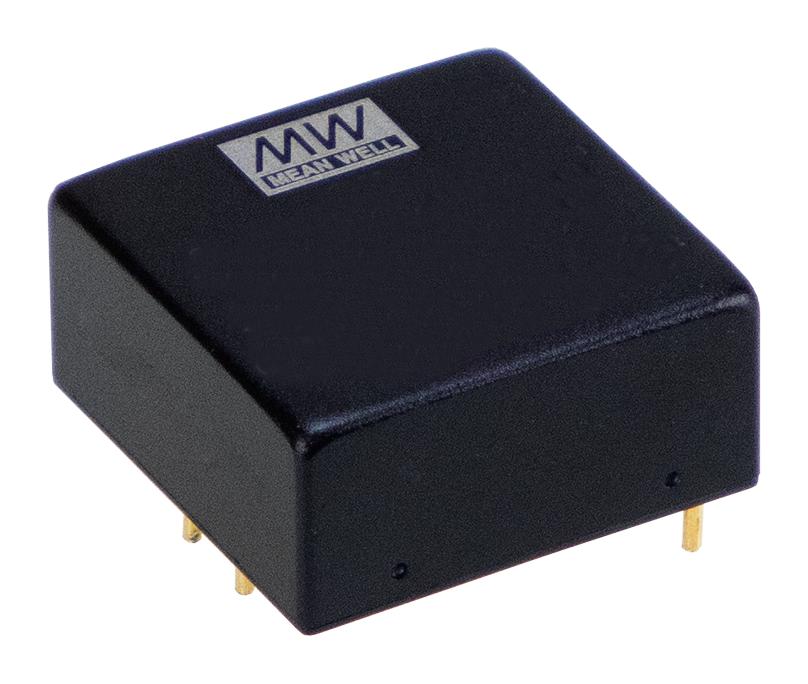

Buy the Mean Well 6W – Reliable DC-DC Converter for Industrial Applications
Experience reliable, high-efficiency power conversion with the DKMW06F05 series DC-DC converter. Compact and robust, it features ultrawide input voltages, excellent thermal performance, and comprehensive protections. Suitable for industrial, telecom, and automation systems, this module ensures stable operation across temperatures from -40°C to +85°C. Easy to integrate with minimal external components, offering 1.5KVDC I/O isolation and meeting strict safety and EMI standards. Perfect for demanding applications requiring consistent, regulated power with long-term durability. Purchase online today for trusted power solutions.
Get Mean Well DKMW06F05 today—built for precision, durability, and efficient power conversion in industrial control, telecommunications, and automation systems.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW06F05?
You can click on the BUY or RFQ button to purchase DKMW06F05 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW06F05?
You can download the DKMW06F05 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW06F05?
MEAN WELL
