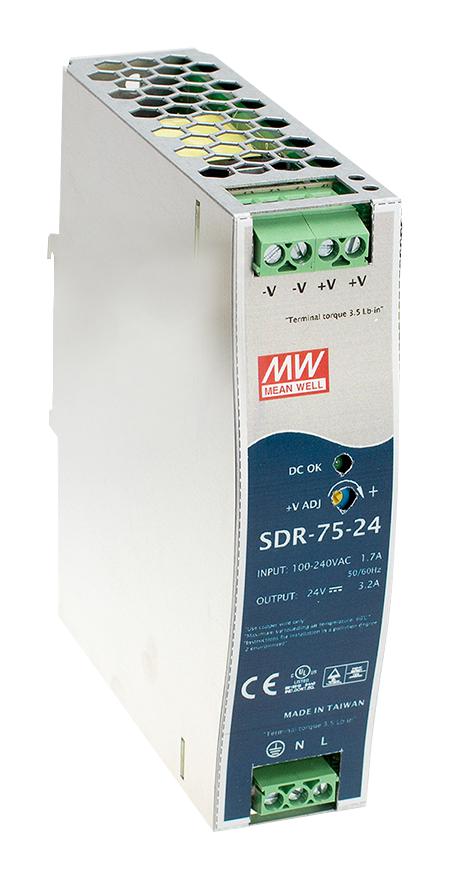

MEAN WELL SDR7524 Industrial Power Supply
The Mean Well SDR-75 series is a 75W industrial DIN rail power supply designed for reliable operation in automation and control systems. Featuring high efficiency of up to 90%, it offers peak load capability of 150%, and includes protections for short circuit, overload, over voltage, and over temperature. Compatible with DIN rail TS-35/7.5 or 15, it is UL 508 and EN61000-6-2 approved, with full load burn-in testing, a 3-year warranty, and operational temperature range from -30°C to +70°C. Perfect for industrial power distribution applications requiring durable, efficient power sources.
MEAN WELL SDR7524 Industrial Power Supply Specifications:
- Power Output: 75W
- Efficiency: Up to 90%
- Peak Load Capability: 150%
- Input Voltage Range: 88~264VAC / 124~370VDC
- Output Voltages: 12V, 24V, 48V with respective currents 6.38A, 3.24A, 1.6A
- Ripple & Noise: 100-120mVp-p
- Voltage Tolerance: 1.0%
- Line Regulation: 0.5%-1.0%
- Load Regulation: 1.0%
- Operating Temperature: -30°C to +70°C, derating as per curve
- Humidity: 20-95% RH non-condensing
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Isolation Resistance: >100MΩ at 500VDC
- Safety Standards: UL508, EN60950-1
- MTBF: 481.9K hours at 25°C
- Dimensions: 125.2mm x 102mm x 32mm
- Certifications: UL, TUV, EN61000-6-2
Buy the Buy MEAN WELL 75W Industrial Power Supply Part Number SDR7524 Online
Enhance your industrial automation setup with the MEAN WELL SDR-75 series 75W DIN rail power supply. Offering high efficiency up to 90%, robust protection features, and full compliance with UL and EN standards, this power supply ensures maximum reliability. Its peak load capability of 150% allows for handling surge loads, while its wide input voltage range makes it suitable for various applications. Installation is straightforward on TS-35/7.5 or 15 DIN rails, making it the ideal choice for durable, efficient power distribution in industrial environments. Purchase online today for fast delivery and reliable performance.
Order your MEAN WELL Series SDR-75 power supply today and ensure your automation projects are powered reliably and efficiently with proven quality.
Frequently Asked Questions
Where can I buy MEAN WELL SDR7524?
You can click on the BUY or RFQ button to purchase SDR7524 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part SDR7524?
You can download the SDR7524 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of SDR7524?
MEAN WELL
