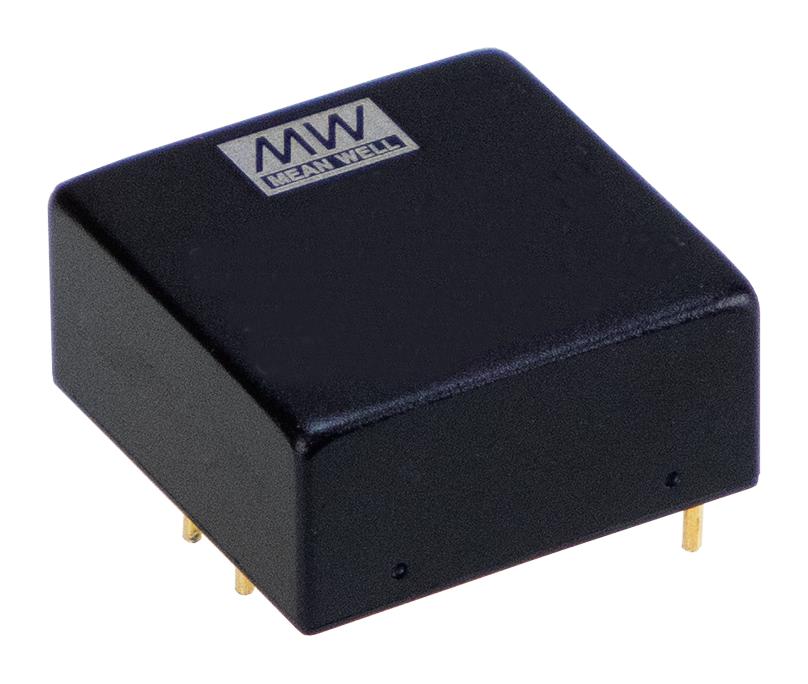

MEAN WELL DKMW06G05 DC-DC Converter Module
The DKMW06G05 is a 6W isolated and regulated DC-DC converter module in a DIP 1"x1" package. It offers input voltage options of 18~75V or 9~36V, with high efficiency up to 86%, and a wide operating temperature range of -40 to +85°C. Features include 1.5KVDC I/O isolation, compliance to EN55032 Class A radiated emission standards without additional components, and protections against short circuit, overload, overvoltage, and input undervoltage. Suitable for industrial control, telecommunication, distributed power systems, and various electronic systems requiring reliable isolated power conversion.
MEAN WELL DKMW06G05 DC-DC Converter Module Specifications:
- Input Voltage Range: 18~75V or 9~36V with 4:1 ultrawide input range
- Output Voltages: 5V (single output)
- Output Current: 0~600mA (depending on model)
- Efficiency: Up to 86%
- Isolation Voltage: 1.5KVDC between I/O and enclosure
- Operating Temperature: -40°C to +85°C
- Ripple & Noise: 60mVp-p (typ.), 85mVp-p (max.)
- Line Regulation: 0.2%
- Load Regulation: 1% (single output), 1.5% (dual output)
- Protections: Short circuit (automatic recovery), Overload, Overvoltage, Input undervoltage
- Switching Frequency: 300KHz
- Dimensions (L*W*H): 25.4*25.4*11.7mm
- Derating Temperature: Refer to datasheet, working at full load up to +85°C
- Safety Standards: UL60950-1, EAC TP TC 004
- Isolation Resistance: 100 MΩ at 500VDC
- Soldering Temperature: 260°C max. for 1-3 seconds
- Vibration: 10~500Hz, 2G, 60 min cycle
Buy the Mean Well Series DKMW06 DC-DC Converter: DKMW06G05
Purchase the DKMW06G05 series DC-DC converter online today and benefit from high efficiency up to 86%, 1.5KVDC isolation, wide temperature range, and comprehensive protections. Designed for industrial control, telecom, and distributed power systems, this 6W module offers reliable and efficient power regulation in a compact 1"x1" package. With easy installation, UL safety standards, and a 3-year warranty, ensure your electronic system’s power needs are met with confidence and longevity.
Get Mean Well DKMW06G05 today—built for reliable power conversion in industrial and telecommunication applications.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW06G05?
You can click on the BUY or RFQ button to purchase DKMW06G05 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW06G05?
You can download the DKMW06G05 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW06G05?
MEAN WELL
