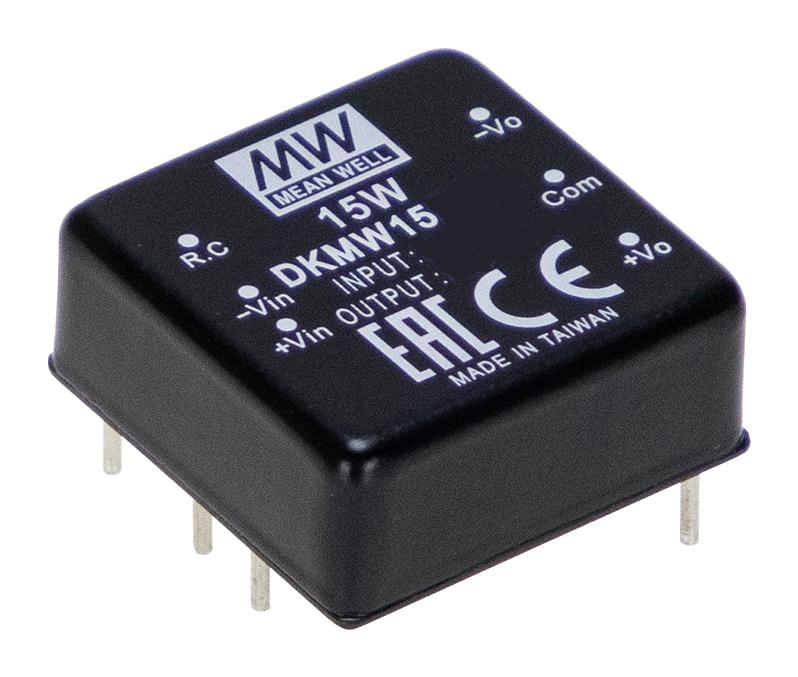

MEAN WELL DKMW15G15 DC-DC Converter
The DKMW15G15 is a 15W isolated, regulated DC-DC converter in a compact 1x1 inch package, suited for industrial, telecommunication, and data systems. It features ultrawide input ranges of 18~75V, high efficiency up to 89%, and robust protections including short circuit, overload, and overvoltage. With a working temperature range of -40°C to +85°C and 3KVDC I/O isolation, it complies with EN55032 Class A standards, making it ideal for telecom, wireless, and industrial control applications. Its versatile output options include 3.3V, 5V, 12V, and 15V, with dual output variants available.
MEAN WELL DKMW15G15 DC-DC Converter Specifications:
- Input Voltage Range: 18~75V
- Output Voltage Options: 3.3V, 5V, 12V, 15V
- Rated Power: 15W
- Efficiency: up to 89%
- Protection: Short circuit (continuous), overload, overvoltage
- Isolation Voltage: 3KVDC input-output
- Operating Temperature Range: -40°C to +85°C
- Ripple & Noise: 50mVp-p(max.)
- Line Regulation: +0.5%
- Load Regulation: +0.5%
- Switching Frequency: 300kHz
- Case Size: 25.4x25.4x10.2mm
- Vibration Resistance: 10-500Hz, 2G
- Humidity Range: 5% to 95% RH non-condensing
- Soldering Temperature: 265°C for 3-5 seconds
- Safety Standards: EN55032 Class A, EAC TP TC 004
- Isolation Resistance: 100MΩ at 500VDC
- Isolation Capacitance: 1200pF
Buy the Mean Well DKMW15G15 – Reliable DC-DC Converter for Industrial Applications
Order the Mean Well DKMW15G15 now and enhance your power systems with this high-efficiency, reliable 15W isolated DC-DC converter. Designed for industrial, telecommunication, and data communication applications, it features ultrawide input ranges of 18 to 75 volts, high-efficiency up to 89%, and a robust operating temperature range from -40°C to +85°C. Equipped with 3KVDC I/O isolation, advanced protections including short circuit, overload, and overvoltage, and compliance with EN55032 Class A standards, this module offers optimal performance and safety in demanding environments. Invest now to upgrade your power infrastructure with proven quality and durability.
Buy Mean Well DKMW15G15 now and experience unmatched reliability and performance in industrial DC-DC power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL DKMW15G15?
You can click on the BUY or RFQ button to purchase DKMW15G15 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DKMW15G15?
You can download the DKMW15G15 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DKMW15G15?
MEAN WELL
