MEAN WELL DDR240C24 Industrial DC-DC Converter
The DDR-240 series is a compact, 240W DIN rail DC-DC converter designed for industrial and railway control applications. It features an ultra-slim width of 40mm, wide input voltage range of 33.6~67.2VDC, and adjustable output voltage from 24V to 28V. With a wide operating temperature of -40°C to +70°C, 4KV DC I/O isolation, and fanless cooling, the module offers high peak load capability (150%) and current sharing for multiple units. Its extensive protections include overvoltage, overcurrent, and heat shutdown, ensuring reliable performance in harsh environments involved in automation, control systems, communication, and transportation sectors.
MEAN WELL DDR240C24 Industrial DC-DC Converter Specifications:
- Power: 240W
- Input Voltage Range: 33.6~67.2VDC
- Output Voltage: 24V, adjustable to 28V
- Rated Current: 10A
- Peak Load Capability: 150%
- Isolation Voltage: 4KV DC I/O (Reinforced isolation)
- Temperature Range: -40°C to +70°C
- Efficiency: up to 92.5%
- Dimensions: 125.2mm x 40mm x 113.5mm
- Protection: Short circuit, Overvoltage, Over temperature, Input reverse polarity, Input under-voltage
- Installation: DIN rail TS-35/7.5 or TS-35/15
- Cooling: Free air convection
- Certifications: EN50155, EN45545-2, IEC62368-1
- Working Humidity: 5~95% RH non-condensing
- Vibration: IEC61373 compliant
- MTBF: 484.9K hours min. (Bellcore)

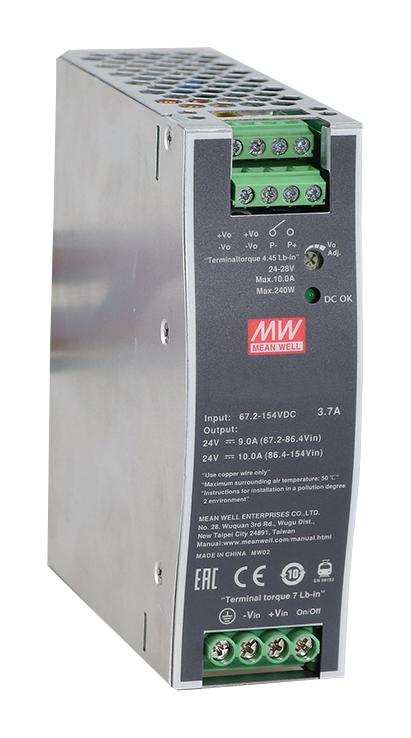

Buy the Buy Mean Well DDR-240 Series Part Number DDR240C24 Online
Purchase the Mean Well DDR-240 series DC-DC converter online to ensure reliable power conversion for industrial and railway systems. Its compact design, wide input voltage range, adjustable output voltage, and extensive safety features make it ideal for harsh environments. Featuring high efficiency, reinforced isolation of 4KV, and fanless operation, this converter supports continuous operation at -40°C to +70°C. Easily install on DIN rail TS-35/7.5 or TS-35/15, and benefit from excellent protections, long MTBF, and proven compliance with railway and safety standards. Order now to enhance your system performance with a trusted, durable power solution.
Get Mean Well DDR-240C24 today—built for precision, high reliability, and industrial-grade performance in railway and control systems.
Frequently Asked Questions
Where can I buy MEAN WELL DDR240C24?
You can click on the BUY or RFQ button to purchase DDR240C24 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DDR240C24?
You can download the DDR240C24 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DDR240C24?
MEAN WELL
