MEAN WELL DRC60B Power Supply

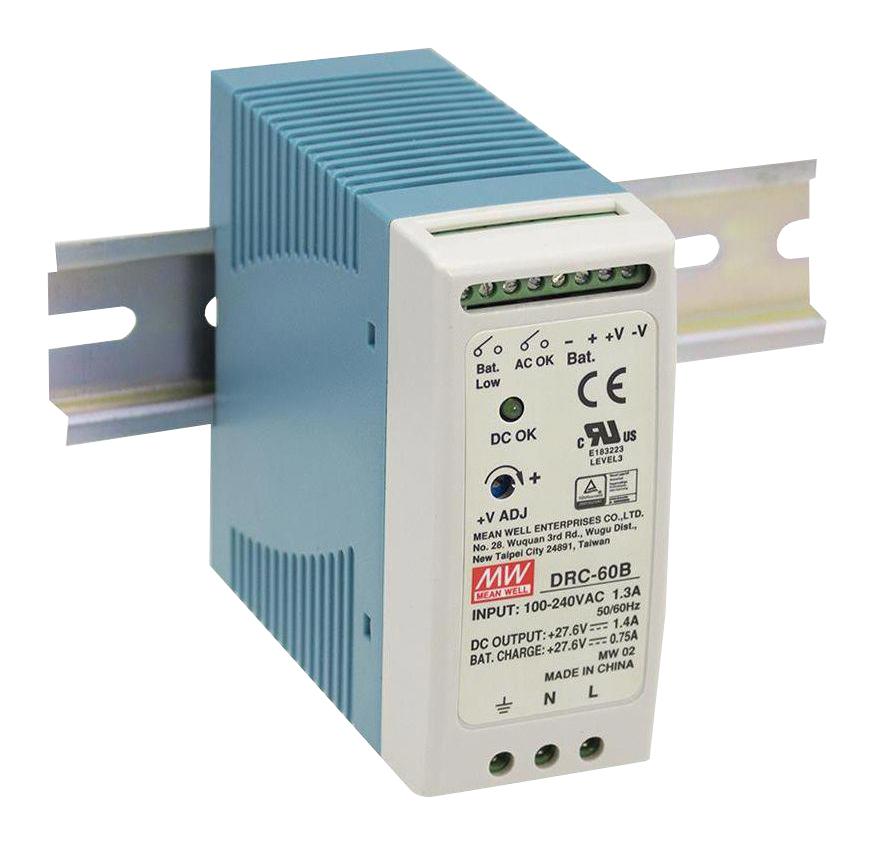

DRC-60 is a 60W DIN rail power supply with UPS functionality, suitable for security access and emergency lighting systems. It accepts universal AC input (90-264VAC) and provides dual DC outputs of 13.8VDC and 27.6VDC, ensuring efficient backup power with up to 88% efficiency. Equipped with overload, overvoltage, battery low, and reverse polarity protections, it features relay alarms for AC and battery status. Designed for reliable operation between -30°C to 70°C and compliant with safety standards, it supports installation on TS-35/7.5 or 15 DIN rails, making it ideal for industrial security and alarm systems.
MEAN WELL DRC60B Power Supply Specifications:
- Input Voltage Range: 90~264VAC, 127~370VDC
- Output Voltage: 13.8VDC (2.8A), 27.6VDC (1.44A)
- Rated Power: 59.34W per output
- Efficiency: Up to 88%
- Line Regulation: 0.5%
- Load Regulation: 0.5%
- Setup Time: 400ms (230VAC), 800ms (115VAC)
- Hold Up Time: 50ms (230VAC), 10ms (115VAC)
- Operating Temp: -30°C to 70°C
- Vibration: 10~500Hz, 2G
- Safety Standards: UL62368-1, EN62368-1, EAC TP TC 004, AS/NZS 60950.1
- Dimensions: 40mm(W) x 90mm(H) x 100mm(D)
- Weight: 0.3kg
- Protections: Overload, Over voltage, Battery low cut-off, Reverse polarity by fuse
- Alarm Outputs: AC OK and Battery Low relay contacts (max 30V/1A)
- Installation: DIN rail TS-35/7.5 or 15
- MTBF: 504,100 hours
Buy the Mean Well DRC-60 U–Reliable Power Supply for Industrial Applications
Purchase the Mean Well DRC-60 power supply online to ensure reliable backup power for security, alarm, and emergency lighting systems. With universal AC input, dual DC outputs of 13.8V and 27.6V, and protections against overload, overvoltage, and reverse polarity, it guarantees safety and consistent performance. Its DIN rail mounting simplifies installation in industrial environments. Designed for temperatures from -30°C to 70°C, with relay alarms for system status, this high-efficiency unit offers durability and peace of mind, making it the ideal choice for your security and automation needs.
Get Mean Well DRC-60 today—built for precision and long-lasting durability in security and UPS systems.
