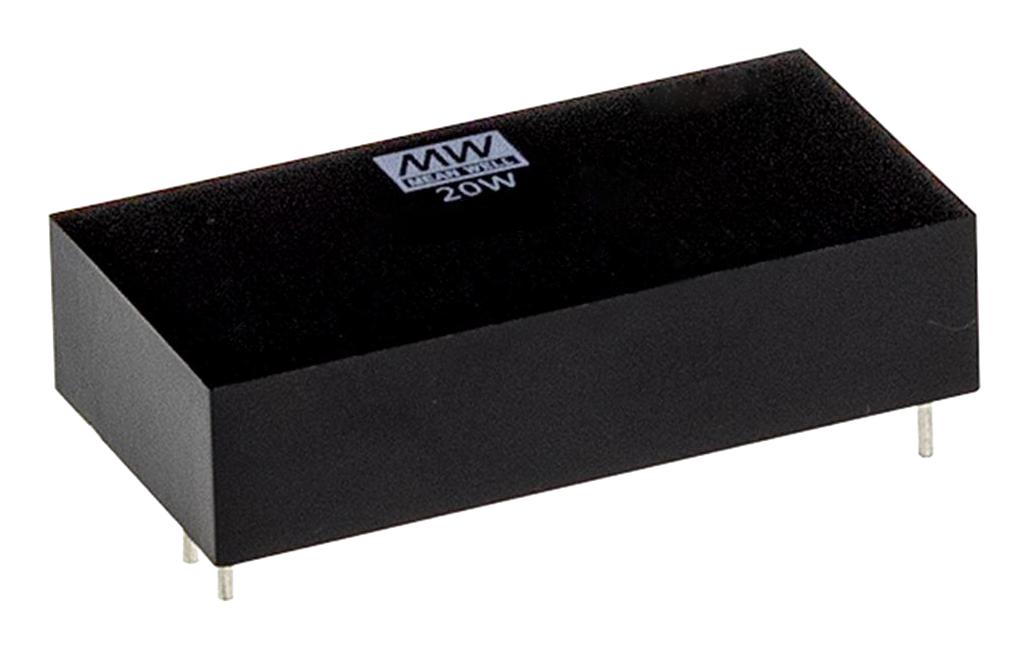

MEAN WELL MDS20C05 Medical Grade DC-DC Converter
The MDS20 series is a 20W medical-grade isolated and regulated DC-DC converter in a 2x1-inch package, designed for medical systems requiring ultra-low leakage current and high efficiency up to 90%. It features wide input ranges of 9-18V, 18-36V, and 36-75V, with output voltages of 5V, 12V, 15V, or 24V. Compliant with IEC60601-1 (2xMOPP), it offers reinforced 4000VAC isolation, -40 to +90°C operating temperature, and protections against short circuit, overload, and under-voltage, making it ideal for medical equipment rated for high safety and reliability.
MEAN WELL MDS20C05 Medical Grade DC-DC Converter Specifications:
- Input Voltage Range: 9-18V, 18-36V, 36-75V
- Output Voltage Options: 5V, 12V, 15V, 24V
- Rated Power: 20W
- Isolation Voltage: 4000VAC (reinforced)
- Operating Temperature: -40°C to +90°C
- Ripple & Noise: 60mVp-p
- Line Regulation: ±0.5%
- Load Regulation: ±0.5%
- Efficiency: up to 90%
- Mechanical Size: 50.8 x 25.4 x 12 mm (2 x 1 x 0.47 inch)
- Protection: Short circuit (automatic recovery), overload (110-180%), under-voltage lockout
- Humidity: 20-90% RH non-condensing
- Soldering Temperature: Max. 260°C for 1-3 sec.
- Standards: IEC60601-1 medical safety, UL94V-0 case material
- Isolation Resistance: 100 MΩ at 500VDC
- Vibration: 10-500Hz, 2G
- MTBF: 1,016,000 hours (MIL-HDBK-217F at 25°C)
Buy the Mean Well Series MDS20 Medical Grade DC-DC Converter: MDS20C05
Purchase the Mean Well MDS20C05 medical-grade DC-DC converter online today for reliable power conversion in medical systems. Featuring a compact 2x1-inch design, high efficiency up to 90%, reinforced 4000VAC isolation, and wide temperature operation from -40°C to +90°C, this converter ensures safety, stability, and low leakage current essential for medical applications. Its protections include short circuit, overload, and under-voltage lockout. Ideal for hospitals, dental, and diagnostic equipment, this certified unit guarantees durability and consistent performance in demanding environments, making it the perfect choice for your medical power needs.
Get Mean Well MDS20C05 today—designed for medical devices with high safety standards and long-lasting performance.
Frequently Asked Questions
Where can I buy MEAN WELL MDS20C05?
You can click on the BUY or RFQ button to purchase MDS20C05 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part MDS20C05?
You can download the MDS20C05 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of MDS20C05?
MEAN WELL
