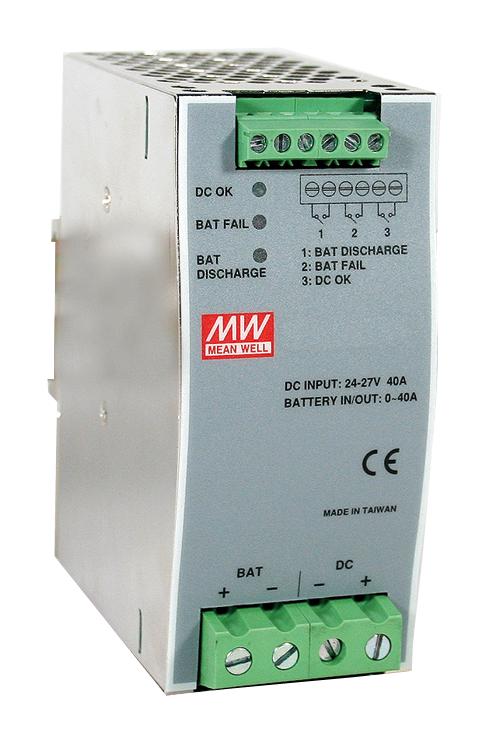

MEAN WELL DRUPS40 UPS Control Module
The DR-UPS40 is a 24V battery controller module designed for DIN Rail UPS systems, capable of supporting up to 40A. It features parallel connection to DC buses, built-in battery testing, polarity protection, relay signal outputs, and LED indicators for status monitoring. Suitable for backup power applications, it includes cooling by free air convection, a relay contact rated at 30VDC and 1A, and operates within -20°C to +70°C. Its compact design fits DIN Rail TS35/7.5 or 15 profiles, ensuring reliable energy storage and backup functions.
MEAN WELL DRUPS40 UPS Control Module Specifications:
- DC Input Voltage: 24~20V (Typ.) 21~29V (Rated Range)
- Rated Current: 40A
- Output: External Battery 4/7/12AH/24V
- Relay Contact Rating: 30VDC, 1A
- DC Bus OK Relay: Short when voltage is 21~29V (+3%) or fail detected
- LED Indicators: Green for DC BUS OK, Red for Battery Fail, Yellow for Battery Discharge
- Working Temperature: -20°C to +70°C
- Humidity Range: 20% to 90% RH
- Size: 125.2mm (W) x 55.5mm (H) x 100mm (D)
- Vibration Resistance: IEC60068-2-6 compliant
- Isolation Voltage: Terminal-Chassis 0.5KVAC
Buy the Mean Well Series UPS Module: DR-UPS40
Secure your backup power system with the DR-UPS40 from Mean Well. Designed for DIN Rail installation, it provides reliable UPS control with built-in battery testing, polarity protection, and status indicators. Supporting 24V systems up to 40A, its compact form ensures easy integration into existing setups. With excellent environmental tolerance and vibration resistance, this module guarantees consistent operation in critical power backup applications. Purchase online today and ensure uninterrupted power supply for your equipment.
Buy Mean Well DR-UPS40 now and experience unmatched reliability and performance for your backup power needs.
Frequently Asked Questions
Where can I buy MEAN WELL DRUPS40?
You can click on the BUY or RFQ button to purchase DRUPS40 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part DRUPS40?
You can download the DRUPS40 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of DRUPS40?
MEAN WELL
