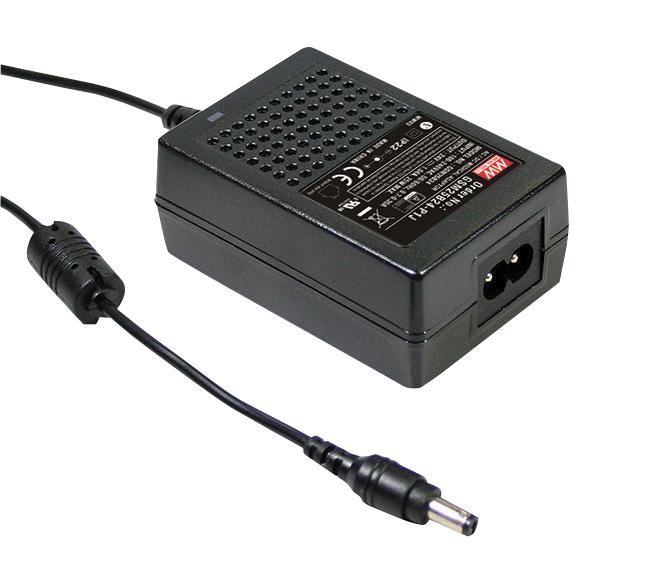

MEAN WELL GSM25B18P1J Medical Power Adaptor
GSM25B is a highly reliable 25W medical power adaptor series designed for portable and clinical medical devices. It features universal input from 80VAC to 264VAC, with output voltages from 5VDC to 48VDC, supporting various medical applications including blood glucose meters, blood pressure monitors, nebulizers, and inhalers. Compliant with international medical safety standards (2 x MOPP), it boasts high efficiency up to 88%, ultra-low leakage current (<50μA), and energy-saving features such as low no-load power consumption below 0.1W. Its fully enclosed plastic case offers double insulation, ensuring safe contact with patients. It supports Protections: Short circuit, Overload, Over voltage, and includes an LED indicator for power on. Certified for medical safety and environmental compliance, it is suitable for BF application with optional lockable DC plug.
MEAN WELL GSM25B18P1J Medical Power Adaptor Specifications:
- Input Voltage: 80VAC to 264VAC, 47~63Hz
- Output Voltages: 5V, 7.5V, 15V, 18V, 24V, 48V
- Rated Power: 20W to 25W depending on model
- Output Ripple & Noise: 60mVp-p to 240mVp-p depending on model
- Voltage Tolerance: +6.0% to 2.0% depending on model
- Line Regulation: 1.0% to 1.0%
- Load Regulation: +6.0% to 2.0%
- Efficiency: Up to 88%
- Protection: Short circuit, Overload, Over voltage (Hiccup mode)
- Temperature Range: -25°C to +60°C operating
- Dimensions: Approximately 79mm x 54mm x 33mm
- Leakage Current: <50μA at 264VAC
- Case: Fully enclosed, flame-retardant plastic (94V-0)
- MTBF: 796,700 hours (minimum)
Buy the Trusted Medical Power Supply – Reliable 25W Adaptor for Clinical Devices
Order the GSM25B18P1J medical power adaptor today and ensure safe, efficient, and reliable power for your portable medical devices. This 25W adaptor features universal input from 80VAC to 264VAC, providing stable output voltages like 18VDC suitable for various medical equipment. It complies with international safety standards, offering high efficiency up to 88%, ultra-low leakage current below 50μA, and low no-load power consumption under 0.1W. Its fully enclosed plastic case ensures safe handling. Perfect for clinical and portable medical applications, it guarantees safety, reliability, and energy efficiency with a 3-year warranty.
Buy GSM25B18P1J now and experience unmatched reliability and efficient power delivery for your medical devices.
