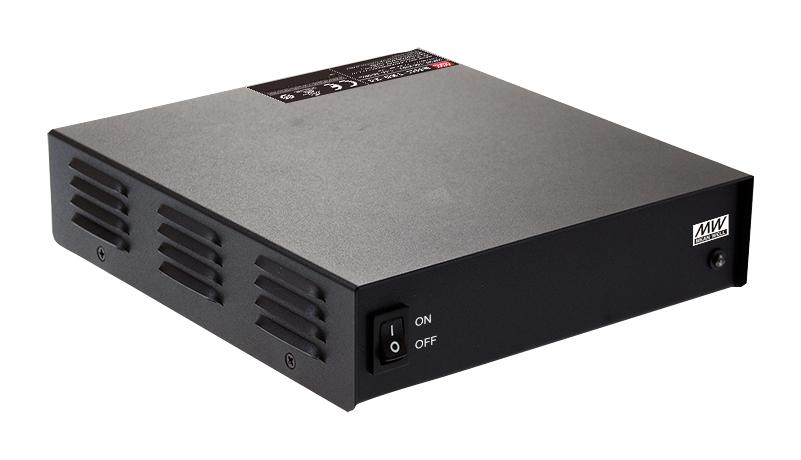

MEAN WELL ENC18048 programmable battery charger
ENC-180 series is a high-efficiency, programmable 180W desktop battery charger designed for diverse battery types including lead-acid (gel, flooded, AGM) and li-ion (lithium iron, lithium manganese). Featuring a built-in 3-stage charging curve, it offers flexible programming via a dedicated programmer, supporting voltages up to 48V. The rugged design ensures operation across -30°C to +70°C, utilizes active PFC, fanless cooling, and provides comprehensive protection including short circuit, overvoltage, over temperature, reverse polarity, and battery under/over voltage. Ideal for backup systems, electric scooters, and surveillance applications, with a 3-year warranty.
MEAN WELL ENC18048 programmable battery charger Specifications:
- Power Output: 180W
- Input Voltage Range: 90~264VAC, 127~370VDC
- Output Voltage Range: 9~15V (12V model), 18~30V (24V model), 36~60V (48V model)
- Output Current: 6A (24V), 3A (48V)
- Efficiency: Up to 98%
- Built-in 3-stage programmable charging curve with default and pre-defined options
- Protection: Short circuit, Over voltage, Over temperature, Reverse polarity, Battery under/over voltage
- Operating Temperature: -30°C to +70°C
- Dimensions: 192mm x 178mm x 45.5mm
- Weight: 1.45kg
- Standards: IEC60950-1, UL60950-1, EMC, Safety Certifications
- Cooling: Fanless, convection cooling
- Power Factor: >0.98/115VAC, >0.95/230VAC
- Isolation Resistance: 100MΩ at 500VDC
- Vibration Resistance: 10~500Hz, 2G
Buy the MEAN WELL 180W – Reliable Programmable Battery Charger for Industrial Applications
Purchase the MEAN WELL 180W programmable battery charger online today to ensure reliable, efficient power for various battery applications. Equipped with a flexible 3-stage charging curve and full protection features, this high-quality charger is ideal for lead-acid and lithium batteries used in backup systems, electric vehicles, and surveillance equipment. Its rugged design allows operation in a wide temperature range of -30°C to +70°C, making it perfect for demanding environments. Buy now and enhance your power management setup with this durable, reliable industrial-grade charger.
Get MEAN WELL 180W station today—built for precision, durability, and versatile battery management in demanding industrial environments.
