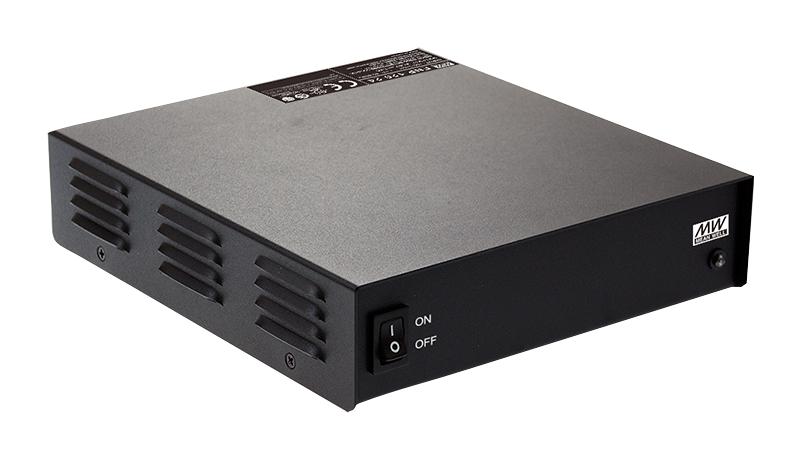

MEAN WELL ENP12012 Communication Power Supply
The ENP-120 series is a 120W desktop power supply designed for communication systems and industrial applications. It features universal AC input, high efficiency, and a rugged mechanical build suitable for ambient temperatures -30°C to +70°C. Its fanless design ensures silent operation, while protections against short circuits, overloads, overvoltages, and overtemperature enhance reliability. Compliant with energy efficiency standards Level VI and various safety certifications, it is ideal for land mobile radio, surveillance, and various communication systems, providing stable output voltages with minimal ripple and noise.
MEAN WELL ENP12012 Communication Power Supply Specifications:
- DC Voltage Options: 13.8V, 27.6V, 55.2V
- Rated Power: 120W (13.8V), 119W (27.6V), 121W (55.2V)
- Maximum Peak Power: 150.4W, 148.5W, 151.8W
- Ripple & Noise (max.): 150mVp-p, 150mVp-p, 350mVp-p
- Voltage Adjustment Range: 11.5 - 15V, 23.5 - 30V, 47.5 - 58.8V
- Input Voltage Range: 90 - 264VAC / 127 - 370VDC
- Frequency Range: 47 - 63Hz
- Efficiency (Typ.): 89.5% - 91.5%
- Power Factor (Typ.): >0.98 / 115VAC, >0.95 / 230VAC
- Dimensions: 192mm (W) x 178mm (H) x 45.5mm (D)
- Operational Temperature: -30°C to +70°C
- Safety Standards: IEC 60950-1, UL 60950-1, EN 55032/24, FCC Part 15
- Protections: Short circuit, Overload, Over voltage, Over temperature
- Cooling: Fanless, convection cooling
- Warranty: 3 years
Buy the Buy Mean Well ENP12012 Power Supply Part Number 120W for Communication Systems
Enhance your communication and industrial system with the reliable 120W power supply from Mean Well. Featuring energy-efficient Level VI certification, fanless operation, and comprehensive protection features, it ensures stable power delivery across temperatures -30°C to +70°C. Its rugged mechanical design and high ripple noise immunity make it ideal for land mobile radio, surveillance, and other critical applications. Easily connect to various voltages, enjoy a 3-year warranty, and benefit from a compact size suitable for tight environments. Purchase online today for dependable performance and peace of mind.
Get Mean Well ENP12012 today—built for reliable communication, industrial applications, and energy efficiency in rugged environments.
Frequently Asked Questions
Where can I buy MEAN WELL ENP12012?
You can click on the BUY or RFQ button to purchase ENP12012 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ENP12012?
You can download the ENP12012 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ENP12012?
MEAN WELL
