A Premier B2B Part Search

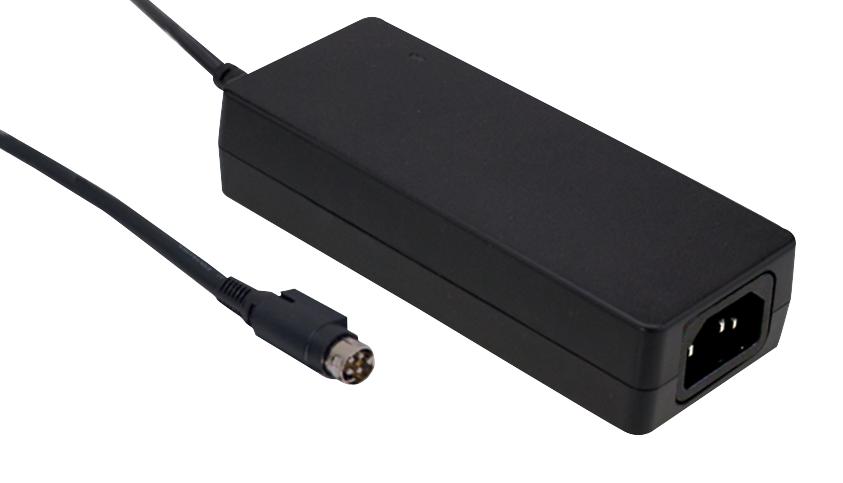

MEAN WELL GSM120A24R7B Medical Power Adaptor
GSM120A24R7B is a high-reliability, 120W medical power adaptor designed for medical devices requiring robust performance and energy efficiency. It features a universal input range from 80VAC to 264VAC, with an output of 24VDC at 5A, and complies with international medical safety standards (2*MOPP). This fanless unit offers up to 91.5% efficiency, ultra-low leakage current (<100μA), and low no-load power consumption (<0.15W). Its durable plastic case ensures safety and easy integration into medical systems, suitable for applications like patient monitors, ultrasound machines, and portable dialysis devices.
MEAN WELL GSM120A24R7B Medical Power Adaptor Specifications:
- Input Voltage: 80-264VAC, 47-63Hz
- Output Voltage: 24VDC, Rated Current: 5A, Max Power: 120W
- Ripple & Noise: 200mVp-p
- Voltage Tolerance: 3.0%
- Efficiency: Up to 91.5%
- Leakage Current: <100μA
- Protection: Short circuit, Overload, Over voltage, Over temperature
- Dimensions: 167mm (L) x 67mm (W) x 35mm (H)
- Operating Temperature: -30°C to +70°C
- Working Humidity: 20% to 90% RH
- Isolation Level: 2xMOPP
- Certification: IEC60601-1, EN60601-1, UL
Buy the Buy Reliable Medical Power Supply Part Number GSM120A24R7B Online
Purchase the GSM120A24R7B medical power adaptor online today to secure a proven solution for your healthcare equipment needs. This 120W unit offers high efficiency up to 91.5%, ultra-low leakage current below 100μA, and compliance with international safety standards like IEC60601-1. Its rugged plastic enclosure and 24VDC output at 5A make it ideal for medical applications such as patient monitors, portable dialysis, and ultrasound systems. Enjoy fast delivery, warranty coverage, and peace of mind knowing your medical devices are powered reliably and safely.
Order your reliable GSM120A24R7B medical power adaptor today and ensure your medical devices operate with safety, efficiency, and compliance.
Frequently Asked Questions
Where can I buy MEAN WELL GSM120A24R7B?
You can click on the BUY or RFQ button to purchase GSM120A24R7B from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM120A24R7B?
You can download the GSM120A24R7B datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM120A24R7B?
MEAN WELL
