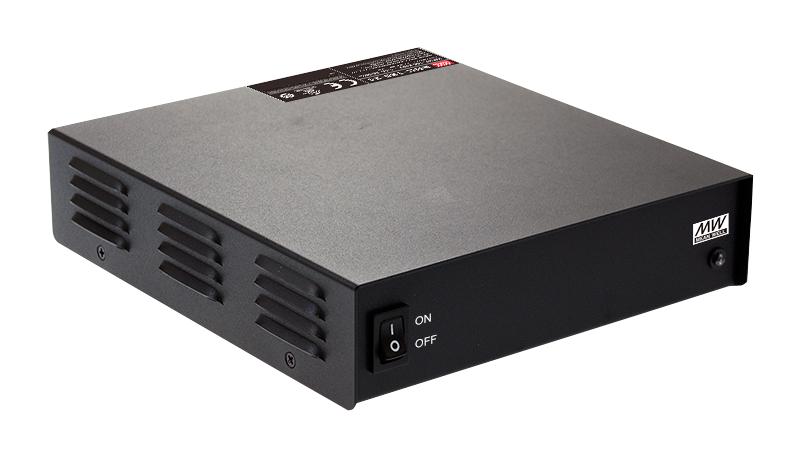

MEAN WELL ENP24024 Power Supply Module
The ENP-240 series is a 240W desktop power supply designed for communication applications, featuring high efficiency, rugged construction, and an operating temperature range of -30°C to +70°C. It supports universal AC input, energy-saving Level VI efficiency, and includes protections against short circuits, overloads, over-voltage, and over-temperature. Ideal for land mobile radio systems, surveillance, and other land mobile applications, it operates silently without a fan by convection cooling, delivering reliable power with peak load capabilities up to 300W. Its modular design ensures durability and consistent performance in harsh environments.
MEAN WELL ENP24024 Power Supply Module Specifications:
- DC Voltage: 13.8V, 27.6V, 55.2V
- Rated Current: 17.40A, 8.7A, 44A
- Peak Wattage: 300W, 300W, 304W
- Ripple & Noise: 150mVp-p, 150mVp-p, 350mVp-p
- Voltage Range: 11.5~15V, 23.5~30V, 47.5~58.8V
- Voltage Tolerance: ±1.0%
- Line Regulation: ±0.5%
- Load Regulation: ±2.0%, ±1.0%, ±0.5%
- Efficiency: 91%, 93.5%, 94%
- Input Voltage: 90~264VAC, 127~370VDC
- Frequency Range: 47~63Hz
- Protection: Short circuit, overload, over voltage, over temperature
- Operating Temperature: -30°C to +70°C
- Dimensions: 192mm x 178mm x 45.5mm
- Weight: 1.23kg; Shipping: 13.3kg per carton
- Certifications: IEC60950-1, UL60950-1, CE, FCC Class B
Buy the Muffin Series ENP240240 Power Supply: ENP24024
Enhance your communication system with the high-efficiency Muffin Series ENP240240 power supply. Designed for rugged use and reliable operation, it offers full range universal input, energy-saving Level VI performance, and comprehensive protections including short circuit and overload safeguards. Its fanless convection cooling ensures silent operation, making it ideal for land mobile radios, surveillance, and other critical applications. Easy to install and operate, this durable power source guarantees stability, efficiency, and compliance with international safety standards. Purchase online today for dependable power solutions.
Get Muffin Series ENP240240 power supply today—built for reliable communication and high efficiency with rugged design and advanced protections.
Frequently Asked Questions
Where can I buy MEAN WELL ENP24024?
You can click on the BUY or RFQ button to purchase ENP24024 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part ENP24024?
You can download the ENP24024 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of ENP24024?
MEAN WELL
