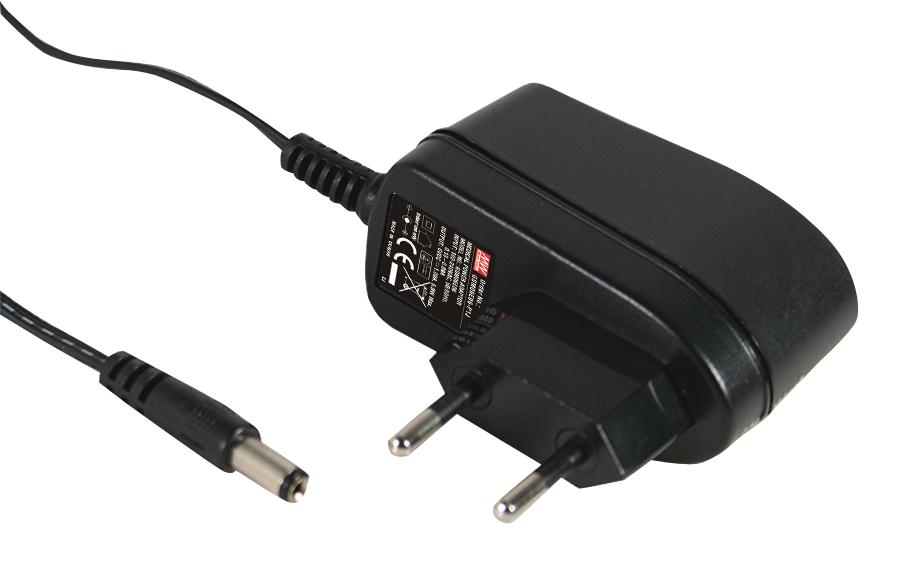

MEAN WELL GSM06E15P1J Medical Power Adapter
GSMO6E series is a high-reliability, 6W medical power adapter suitable for portable and dental devices, blood glucose meters, blood pressure monitors, nebulizers, and inhalers. It features a universal 85VAC to 264VAC input, low leakage current (<50μA), excellent efficiency up to 82%, and compliance with medical safety standards including 2x MOPP and international certifications. Encased in flame-retardant plastic with double insulation, this fully enclosed adaptor provides stable, high-quality power with protections against short circuit, overload, and overvoltage, ensuring safe operation and longevity for medical applications.
MEAN WELL GSM06E15P1J Medical Power Adapter Specifications:
- Input Voltage: 85VAC to 264VAC
- Output Power: 6W
- Output Voltages: 5V, 7.5V, 12V, 15V, 18V, 24V
- Rated Current: 1.28A at 5V, decreasing with higher voltages
- Leakage Current: <50μA
- Efficiency: up to 82%
- No Load Power Consumption: <0.3W
- Protections: Short circuit, Overload, Overvoltage
- Operating Temperature: 0°C to +50°C
- Dimensions: 32.66mm x 42.5mm x (height omitted in data)
- Certifications: TUV EN60601-1, EN60601-1-11, UL, CE
- Flame Retardant Plastic Case: 94V-0 material
- Safety: Double insulation, 2x MOPP, medical safety approved
- Standards Compliance: EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN60601-1-2
Buy the Buy Medical Power Supply Part Number GSM06E15P1J Online
Purchase the GSM06E15P1J medical power adapter online today to ensure your portable or clinical device receives reliable, safe, and efficient power. Designed with a universal input from 85VAC to 264VAC, it is perfect for various medical applications such as blood glucose meters or nebulizers. With low leakage current below 50μA, high efficiency up to 82%, and rigorous safety standards including double insulation and 2x MOPP, this adapter guarantees safety and durability. Its compact design makes installation straightforward, and it is backed by a 3-year warranty, providing peace of mind for medical professionals and device manufacturers seeking dependable power solutions.
Get GSM06E15P1J today—built for medical precision, safety, and long-lasting durability.
Frequently Asked Questions
Where can I buy MEAN WELL GSM06E15P1J?
You can click on the BUY or RFQ button to purchase GSM06E15P1J from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part GSM06E15P1J?
You can download the GSM06E15P1J datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of GSM06E15P1J?
MEAN WELL
