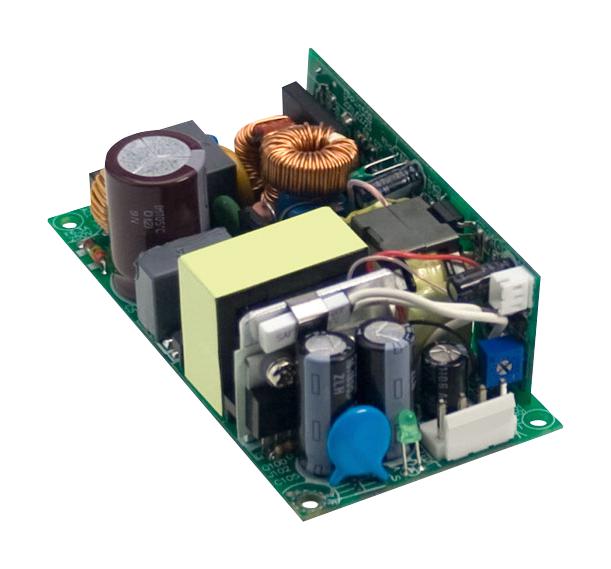

MEAN WELL EPP10015 Industrial Power Supply
The EPP-100 series is a 100W compact, high-efficiency power supply designed for industrial and automation applications, featuring active Power Factor Correction, wide input voltage range, and built-in protections including short circuit, overload, over-voltage, and over-temperature. Its 4x2-inch size and advanced EMI filtering ensure flexibility in installation, while the auxiliary 12V/0.3A output supports additional components. Proven reliability with a 3-year warranty, it operates efficiently at up to 92.5%, making it ideal for cost-effective, dependable power management in various equipment. Certifications include UL and TUV standards.
MEAN WELL EPP10015 Industrial Power Supply Specifications:
- Power: 100W with PFC function
- Input Voltage: 90~264VAC, 127~370VDC, 47~63Hz
- Output Voltage: 12V, 15V, 24V, 27V, 48V models
- Max Output Power: 76.8W to 102W depending on model and cooling method
- Efficiency: up to 92.5%
- Protection: Short circuit, Overload, Over-voltage, Over-temperature
- Cooling: 75W free air convection, 100W with 20CFM forced air
- Dimensions: 101.6mm x 50.8mm x 29mm
- Operating Temperature: -30°C to +70°C, derating at low input voltages
- Isolation Resistance: 100MΩ at 500VDC
- Certifications: UL60950-1, TUV EN60950-1, compliant with EMC standards
- Warranty: 3 years
- Built-in 12V/0.3A auxiliary output support
Buy the Mean Well Series EPP Power Supply: EPP-100-15
Order the Mean Well EPP-100-15 power supply online today and enjoy quick delivery, dependable operation, and excellent efficiency for your industrial or automation equipment. Featuring active PFC, wide input voltage compatibility, and multiple protective features, this compact 100W power supply ensures stable power delivery in demanding environments. Its high efficiency of up to 92.5%, built-in auxiliary output, and comprehensive safety certifications make it the ideal choice for cost-effective, reliable power management in various industrial applications. Upgrade your system with the trusted performance of Mean Well.
Buy Mean Well EPP-100-15 now and experience unmatched reliability and performance in industrial power solutions.
Frequently Asked Questions
Where can I buy MEAN WELL EPP10015?
You can click on the BUY or RFQ button to purchase EPP10015 from an authorized MEAN WELL distributor.
How do I troubleshoot issues or seek technical support for part EPP10015?
You can download the EPP10015 datasheet or visit the MEAN WELL website for support.
Who is the manufacturer of EPP10015?
MEAN WELL
